Wilwood Side-Mount 15/16-inch Compact Master with NPT Outlet and Reservoir Options

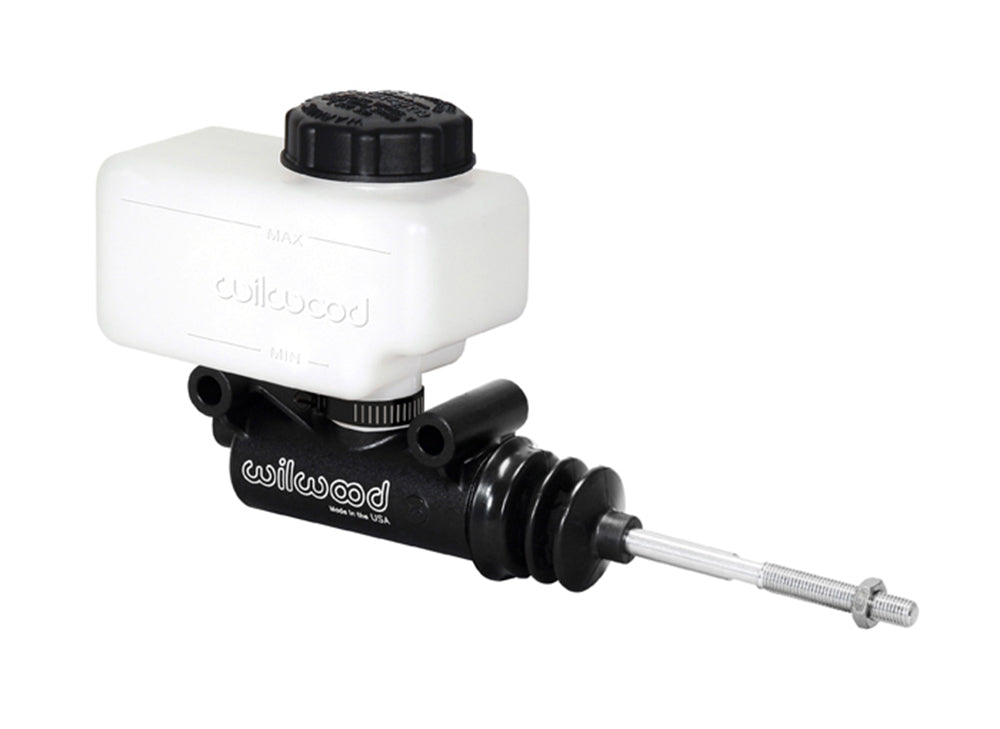

This side-mounted Compact Remote master places its mounting bosses three inches apart and extends the pushrod to suit that layout. The fifteen-sixteenths-inch bore displaces a specified 0.77 cubic inch over the full stroke, with the fluid supply arranged through either included reservoir. For the manufacturer Wilwood Engineering, disc brake system design and manufacturing encompass calipers, valves, fittings, master cylinders, brake lines and rotors. Bill Wood founded the Camarillo, California company in 1977. Its motorsport, specialized and street-performance applications rely on components selected with the complete brake assembly and its operating requirements in view.

Technical Details

• Manufacturer part number: 260-14790
• Material: Aluminum / Plastic
• Cylinder bore: 15/16"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 0.77 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 8.84"
• Mounting centers: 3.00 inches, side mount
• Pushrod dimensions: 5.01" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 1/8-27 NPT outlet; select the appropriate pressure-line adapter

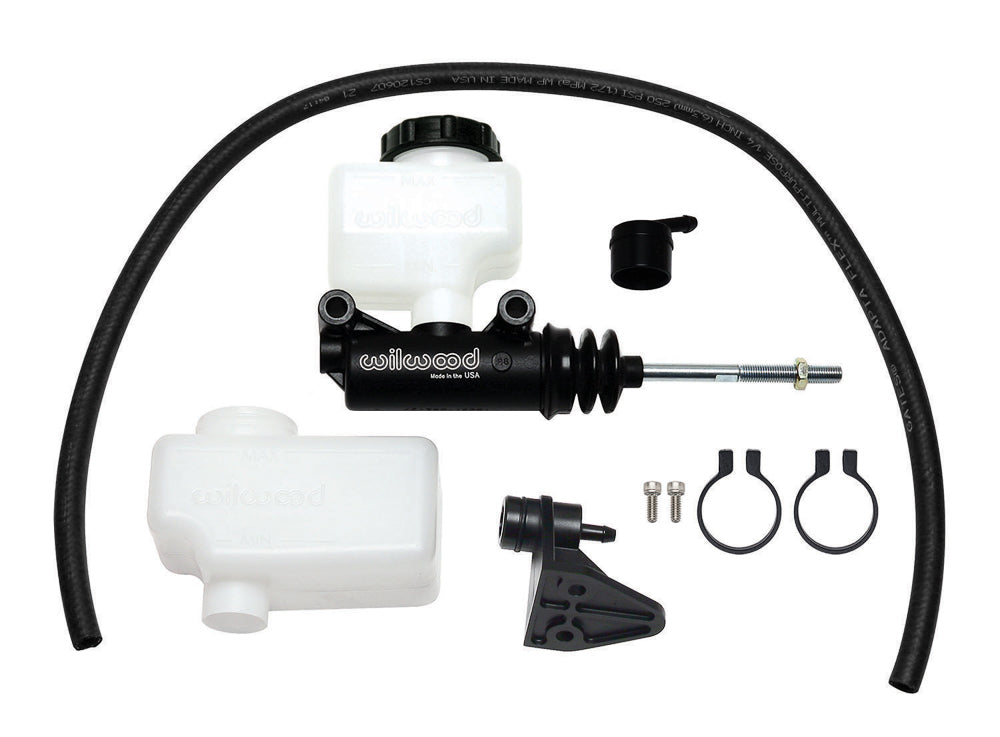

• Reservoir package: 4.5 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

Confirm the side-boss mount and 5.01-inch threaded rod fit the pedal installation. Choose between the 4.5- and ten-ounce containers according to volume demand and clearance, and provide the appropriate 1/8-27 NPT pressure fitting. A rigid mount and unobstructed piston return remain essential whichever reservoir arrangement is used.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS944 instructions and specifications
• Wilwood FL162 instructions and specifications

The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
