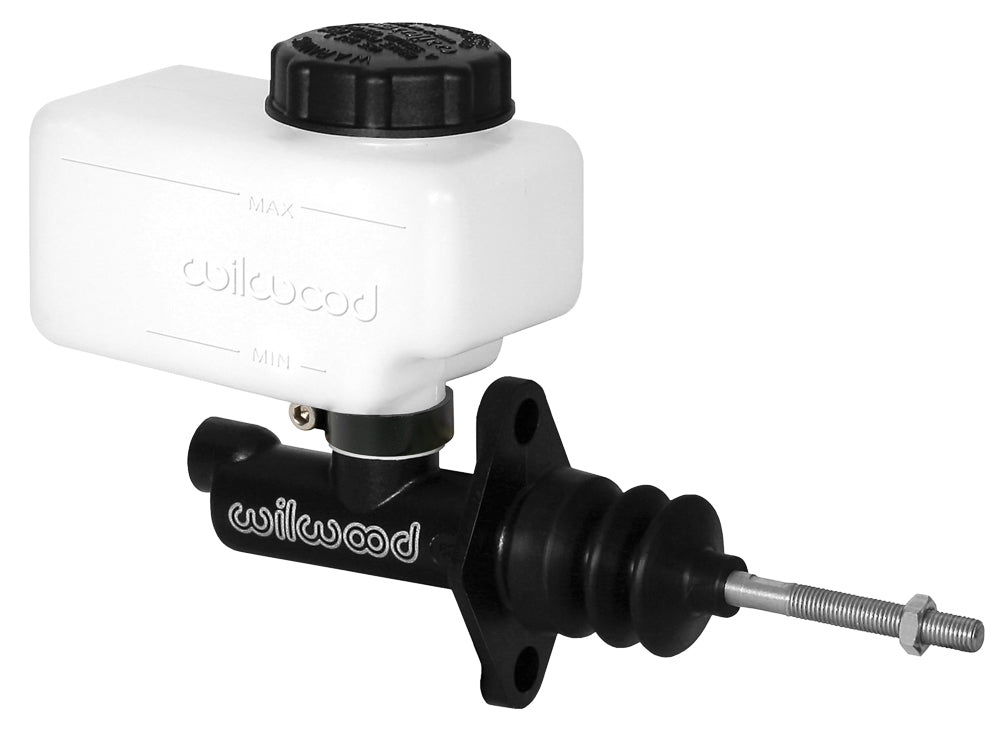

Wilwood Compact Banjo Master Cylinder Kit, 15/16-inch Bore, with Flange Mount

This Compact Remote kit combines a fifteen-sixteenths-inch piston bore with the 3/8-24 banjo pressure-port arrangement. The master retains a 1.12-inch stroke, while the supplied seven- and ten-ounce reservoirs offer different fluid-storage envelopes. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Its fittings, valves, calipers, brake lines, master cylinders and rotors are used across motorsport, street-performance and specialized applications. Matching a component means checking both its own specification and the braking assembly around it.

Technical Details

• Manufacturer part number: 260-14787
• Material: Aluminum / Plastic
• Cylinder bore: 15/16"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 0.77 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 7.80"
• Mounting centers: 2.25 inches, vertical flange
• Pushrod dimensions: 4.00" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 3/8-24 banjo outlet; suitable banjo fitting is purchased separately

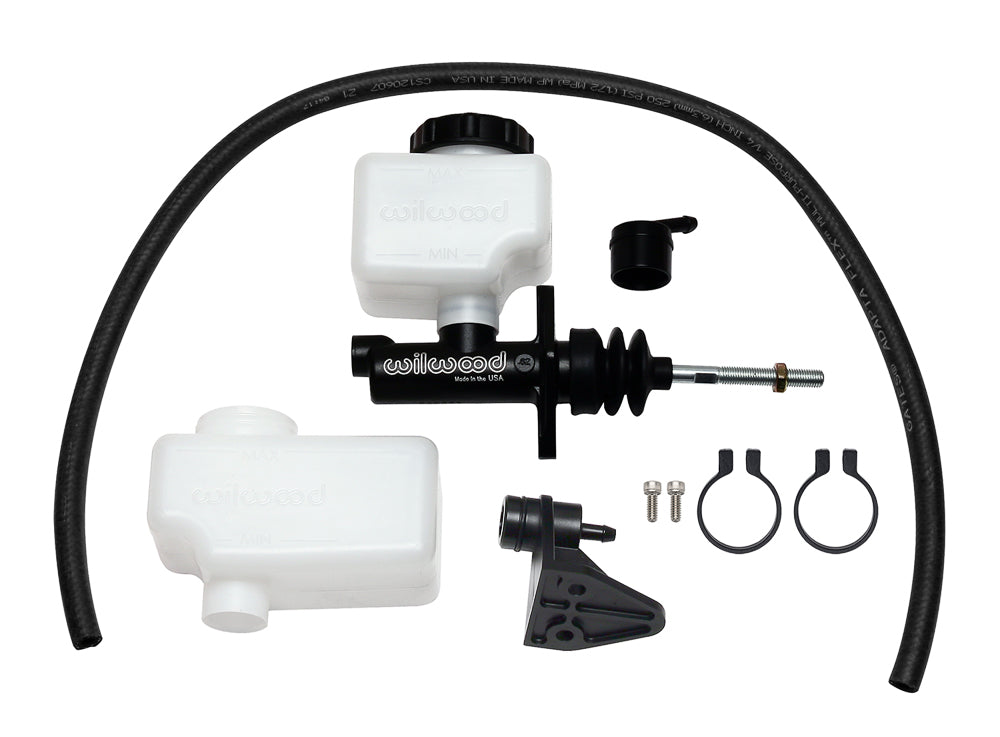

• Reservoir package: 7 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

Use the correct banjo fitting and seals, purchased separately, rather than threading an inverted-flare line directly into the port. Verify the 2.25-inch flange and 5/16-24 pushrod connection. Either supplied reservoir can be fitted directly or remotely using the included low-pressure feed components.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1057 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
