Wilwood One-Inch and 1-1/8-inch Tandem Master Fittings, Screws and Spacer Kit

A piston-recess spacer is included with the fittings and cap screws in this large-bore tandem hardware package. The spacer distinguishes it from the dust-boot package for the smaller-bore versions and must be used only where the actuator geometry requires it. Wilwood Engineering serves motorsport, specialized and street-performance applications through disc brake system design and manufacturing. Bill Wood founded the company in 1977, and it is based in Camarillo, California. The range spans valves, rotors, fittings, calipers, brake lines and master cylinders; the installed braking assembly determines the appropriate combination of parts.

Technical Details

• Manufacturer part number: 260-14502
• Material: Steel
• Component: Master-cylinder installation hardware, not a piston/seal rebuild kit

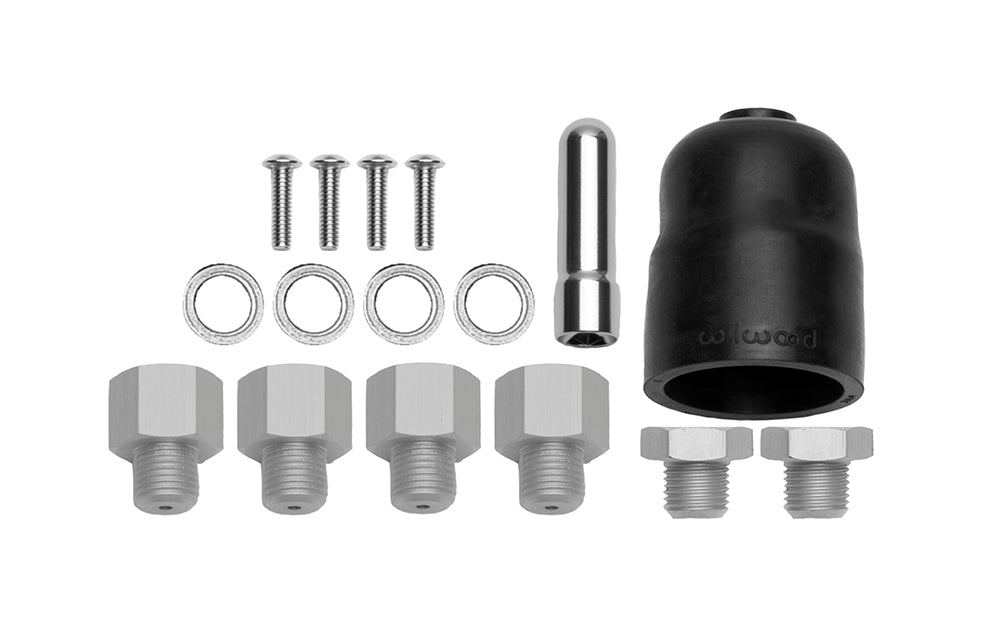

• Supplied items: Outlet adapters, sealing washers, reservoir screws and operating-interface hardware appropriate to the specified master

Fitment & Compatibility

Use with the specified Wilwood one-inch or one-and-one-eighth-inch tandem master. Check pushrod engagement and free piston return after selecting any spacer; an incorrect length can preload the master. The package does not include a replacement master, pushrod or internal seal set.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
