Wilwood Tandem Master Hardware Kit for 7/8- and 15/16-inch Bores, with Dust Boot

Fittings, cap screws and a replacement dust boot make up this accessory kit for the specified smaller-bore tandem masters. It services external installation hardware rather than renewing the hydraulic piston seals or supplying a complete master cylinder. Master cylinders are part of Wilwood Engineering's wider disc brake range, alongside calipers, rotors, valves, fittings and brake lines. Wilwood was founded in 1977 by Bill Wood and designs and manufactures its systems from Camarillo, California for motorsport, specialized and street-performance applications. Hydraulic sizing and mechanical compatibility remain decisions for the complete brake system.

Technical Details

• Manufacturer part number: 260-14501
• Material: Steel
• Component: Master-cylinder installation hardware, not a piston/seal rebuild kit

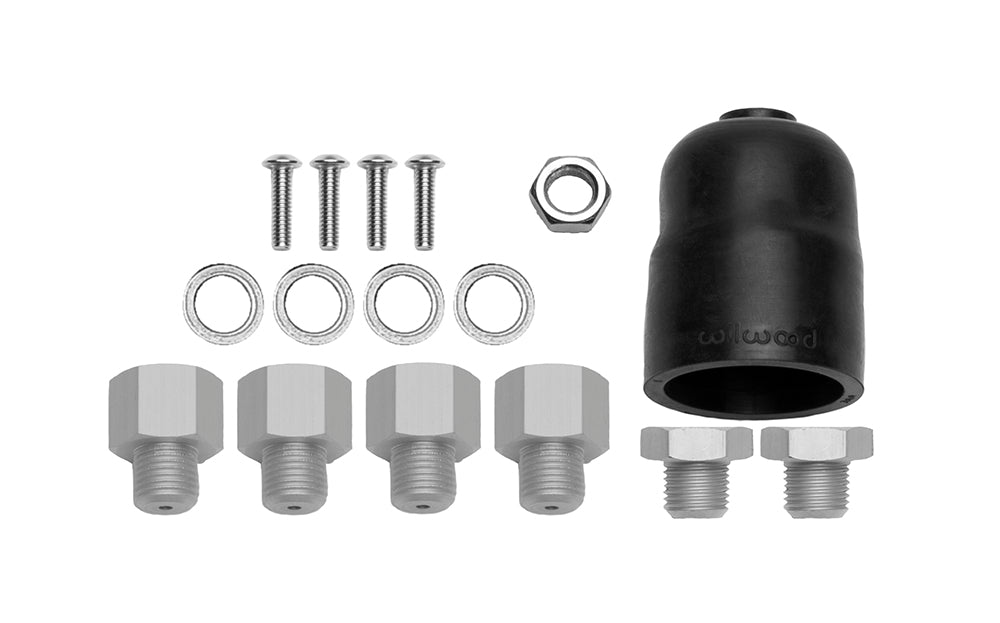

• Supplied items: Outlet adapters, sealing washers, reservoir screws and operating-interface hardware appropriate to the specified master

Fitment & Compatibility

Match the Wilwood tandem family and its seven-eighths- or fifteen-sixteenths-inch bore before ordering. Confirm the required line seats and boot arrangement against the installed cylinder. Internal rebuilding and pushrod selection are separate tasks; this is not a piston-and-seal repair kit.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
