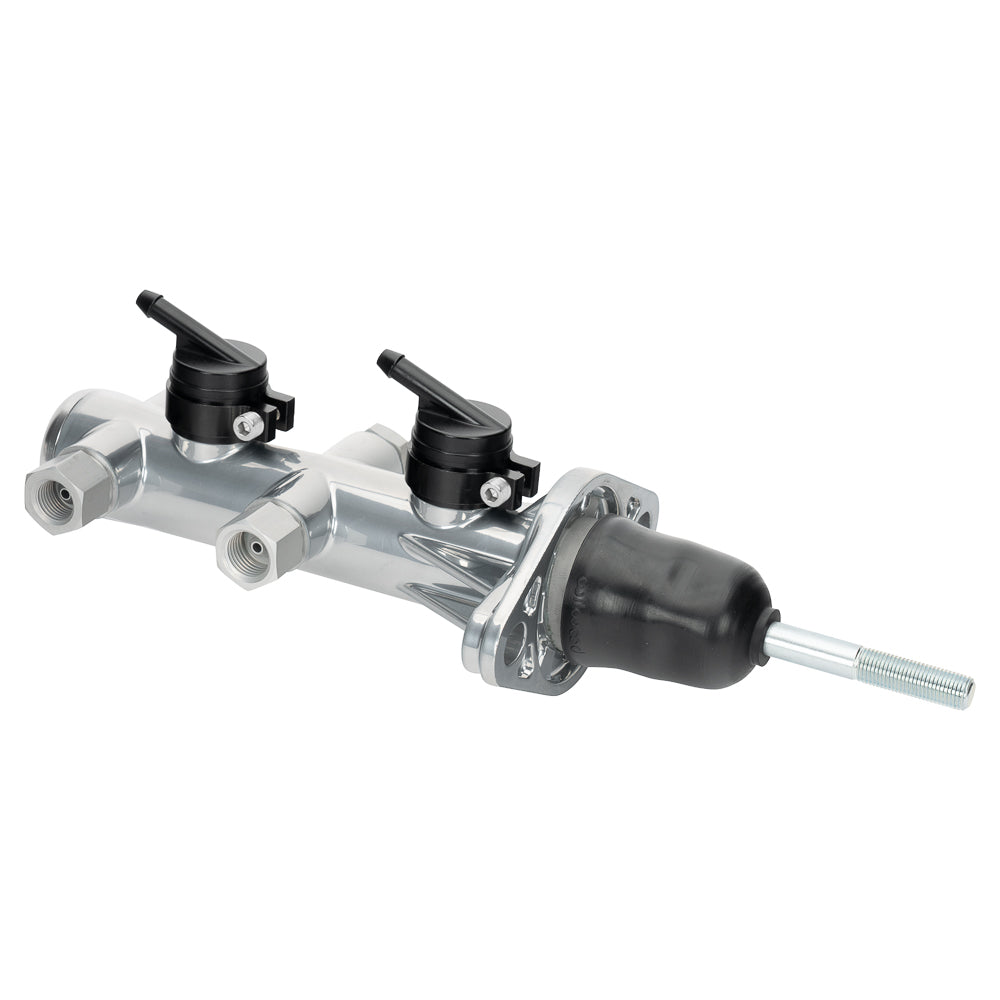

Wilwood Chrome Powder-Coated One-Inch Tandem Master, Remote Reservoirs and Pushrod

This one-inch Remote Tandem master supplies its pedal pushrod rather than relying on a separate actuator. The chrome powder-coated housing works with two remote seven-ounce reservoirs, letting the installation keep the cylinder low while planning independent fluid-container access. From calipers and rotors to master cylinders, valves, brake lines and fittings, Wilwood Engineering's range covers disc brake systems and service components. Bill Wood founded the company in 1977; it is based in Camarillo, California and designs and manufactures for street-performance, specialized and motorsport applications. All component choices need to account for the complete system.

Technical Details

• Manufacturer part number: 260-14388-P
• Material: Aluminum / Plastic
• Cylinder bore: 1.00"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.23" x 3/8-24
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs

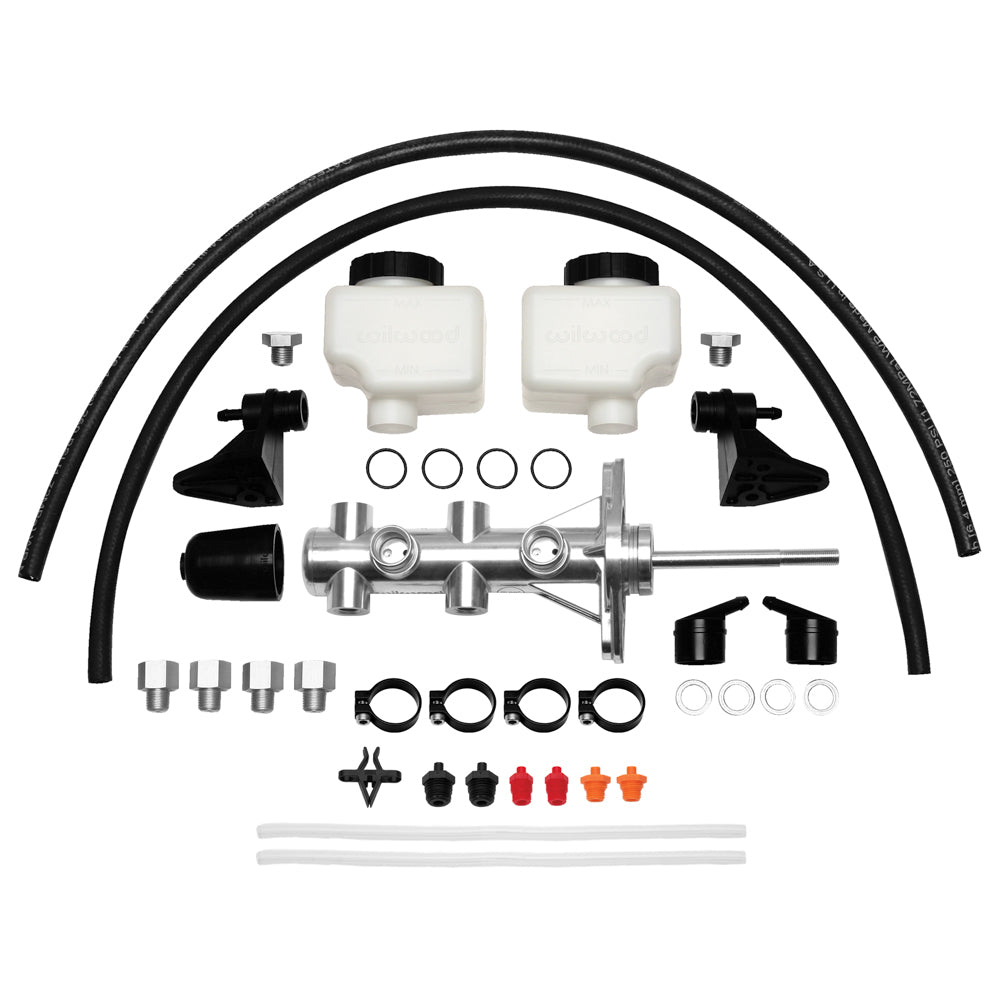

• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting
• Housing envelope: 7.16 inches as listed, excluding the projecting operating rod; verify the complete rod-equipped length

Fitment & Compatibility

Match the pedal lever, threaded rod and 3.22–3.40-inch mounting flange. Account for the pushrod extension when checking the installed length, and do not let a floor or pedal stop shorten the cylinder's full travel. Line adapters, unused-port plugs and reservoir hardware are supplied; system-specific pressure lines remain part of the installation.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1189 instructions and specifications
• Wilwood FL428 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood FL467 instructions and specifications
