Product details

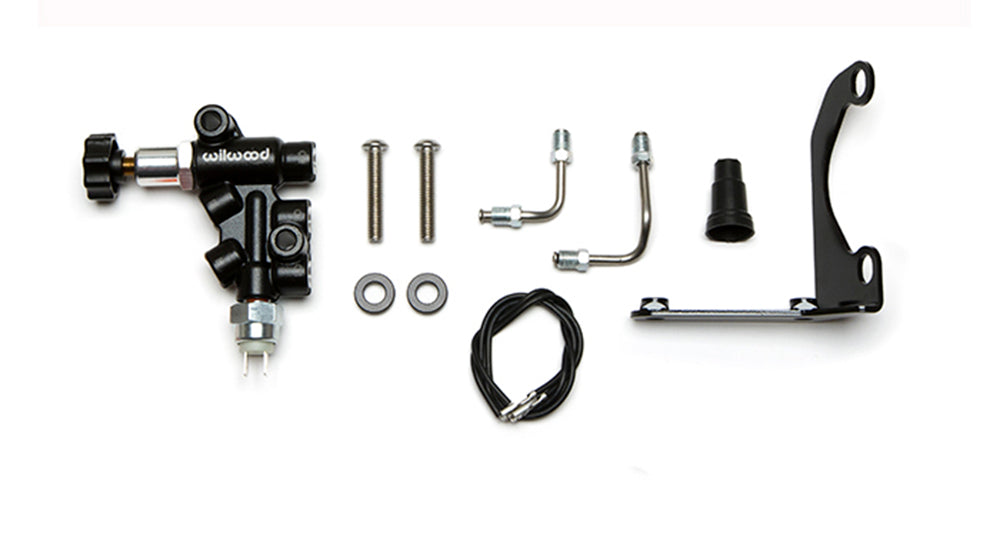

This package mounts an included combination proportioning valve on the left side of the specified Remote Tandem master. Its formed stainless tubes are shaped for that cylinder family, with a black bracket and fastening hardware to support the valve beside it. Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Bill Wood founded the company in 1977; its range now encompasses calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must suit the hydraulic and mechanical requirements of the complete system.
Technical Details
- Manufacturer part number: 260-14248
- Material: Aluminum / Steel
- Primary Outlet Thread Size: 3/8-24 IF
- Finish: Clear Anodize / Black E-coat
- Kit contents: Combination proportioning valve, mounting bracket, formed stainless lines and fastening hardware; master cylinder is not included
- Bracket side: Left
- Valve functions: Adjustable rear pressure, hydraulic brake-light switch and isolated front/rear circuits
- Fluid inlet: 3/8-24 IF
- Outlet connection: 3/8-24 IF
Fitment & Compatibility
Use with the matching Remote Tandem mounting and outlet arrangement, including the 260-14241 through 260-14244 families. Confirm clearance and connect front and rear circuits to the labeled valve ports. The linked bracket-only instructions show a separately sold valve, but this complete package includes valve 260-11179.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS1178 instructions and specifications
- Wilwood FL428 instructions and specifications
- Wilwood FL162 instructions and specifications
PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
