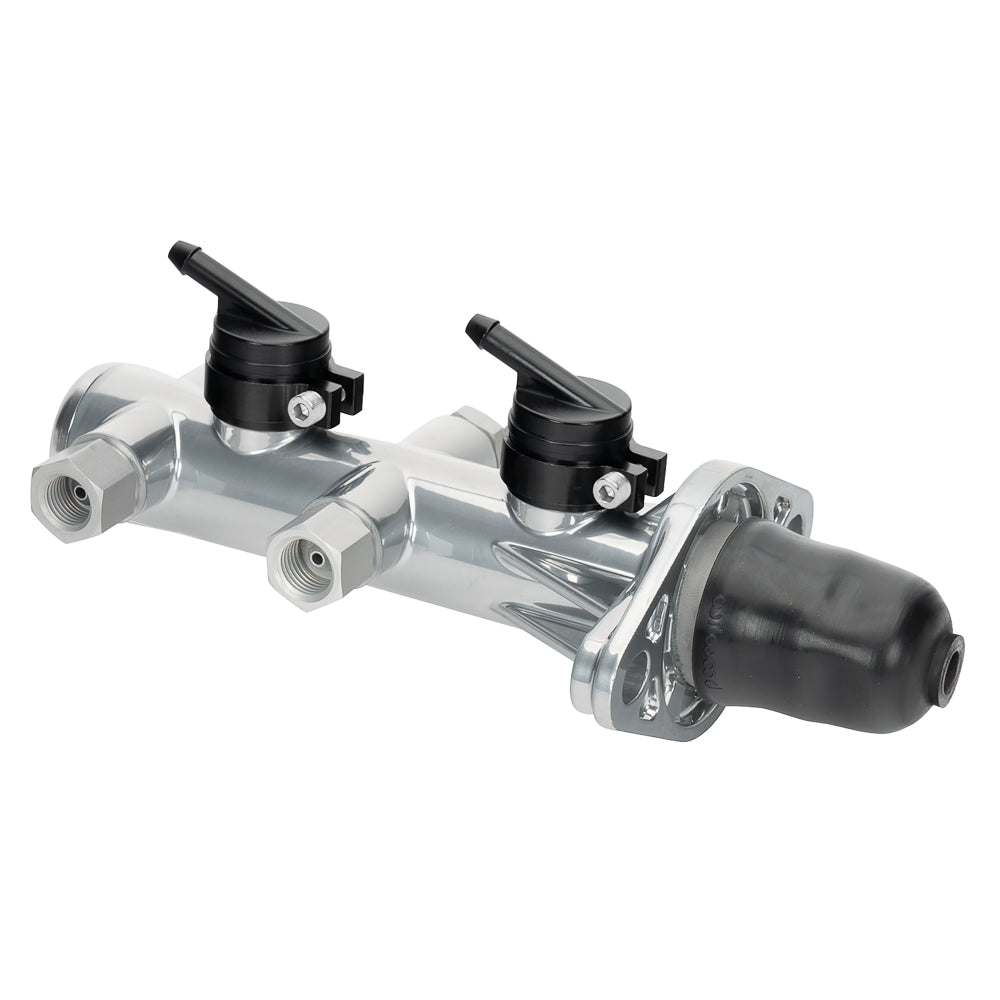

Wilwood Remote Tandem Master, 1-1/8-inch Bore, Chrome Powder Coating, Without Rod

The largest bore in this rodless Remote Tandem range is housed in chrome powder-coated aluminum. Separate seven-ounce reservoirs serve the two circuits, while the threaded pressure ports on both sides permit the required outlet and plug arrangement. The disc brake systems Wilwood Engineering designs and manufactures include calipers, rotors, master cylinders, brake lines, valves and fittings. The company dates to Bill Wood's founding in 1977 and is based in Camarillo, California. Motorsport, specialized and street-performance applications all call for parts matched to the operating requirements of the full system.

Technical Details

• Manufacturer part number: 260-14244-P
• Material: Aluminum / Plastic
• Cylinder bore: 1-1/8"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Overall Length: 7.16"
• Mounting centers: 3.22–3.40"
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs

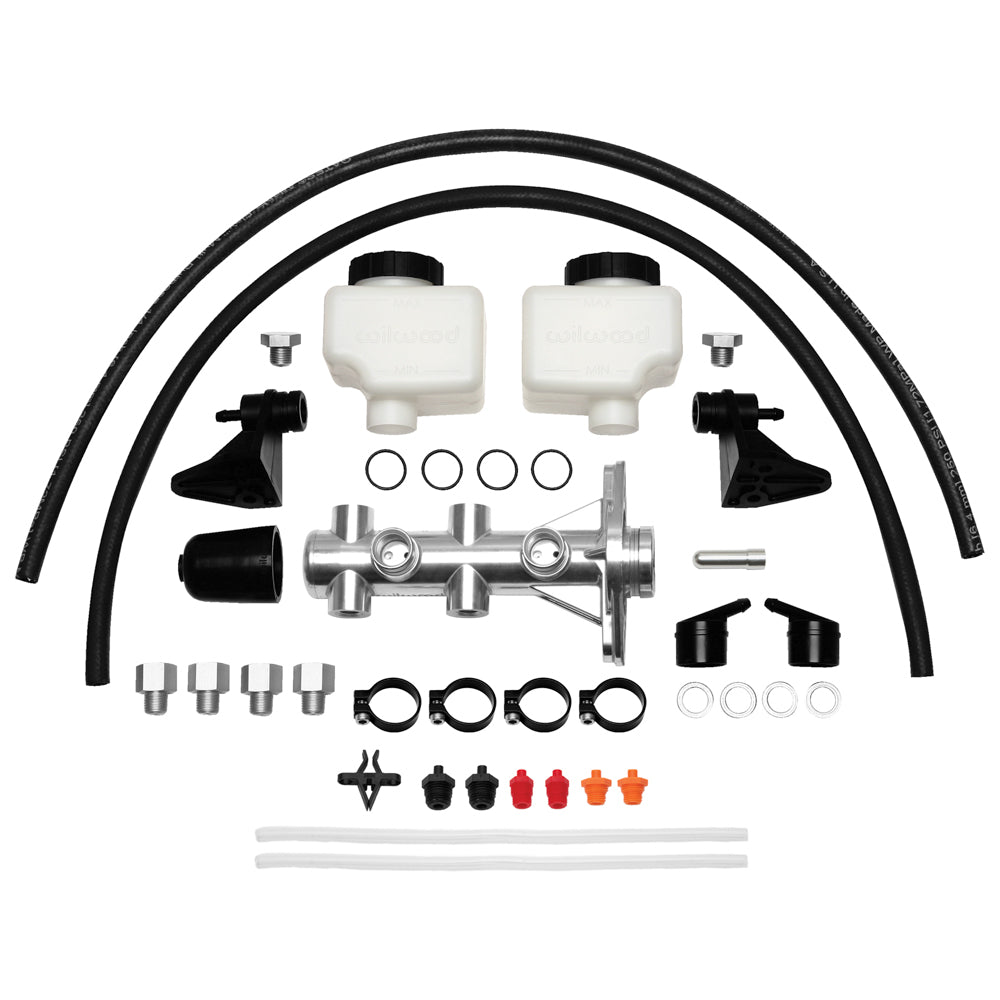

• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting

Fitment & Compatibility

Provide a compatible pedal or booster actuator and check its engagement without preloading the piston. Use the appropriate flare adapters, secure the two reservoir feeds and allow full stroke before any pedal stop. This is a custom-system component rather than a model-specific replacement based solely on mounting dimensions.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1189 instructions and specifications
• Wilwood FL428 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood FL467 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
