Wilwood 1-1/8-inch Compact Remote Master Kit, Flange Mount, with Banjo Outlet

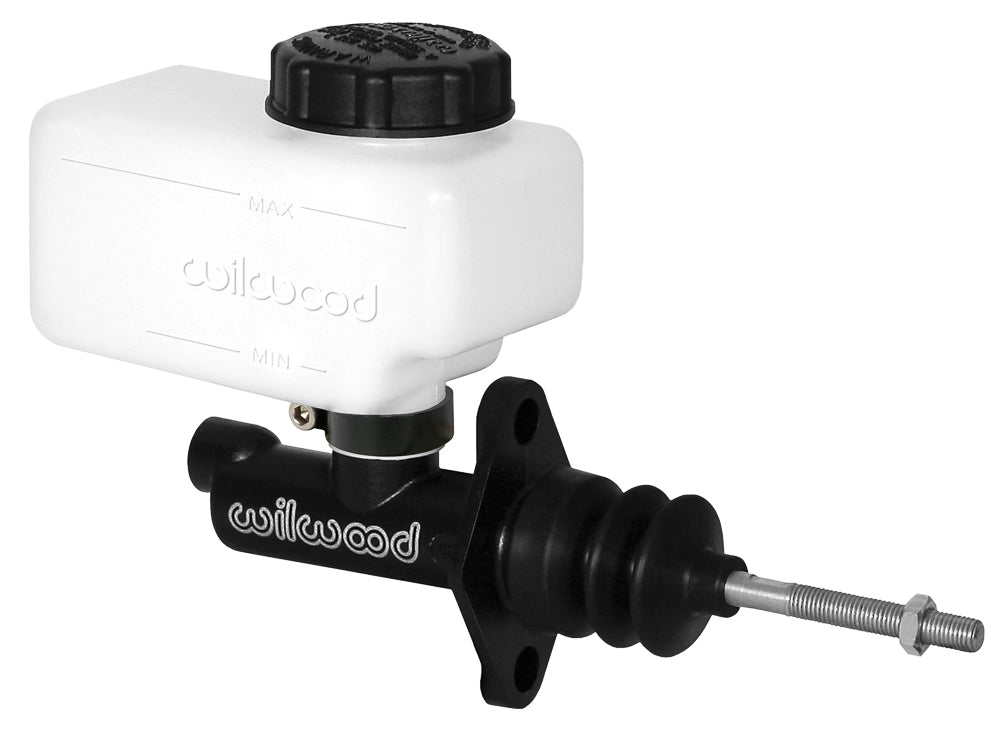

The one-and-one-eighth-inch bore distinguishes this flange-mounted Compact Remote kit from its smaller-bore companions. Both seven- and ten-ounce reservoirs are included, allowing the fluid supply to be placed above the master or on a separate mounting bracket. Master cylinders are part of Wilwood Engineering's wider disc brake range, alongside calipers, rotors, valves, fittings and brake lines. Wilwood was founded in 1977 by Bill Wood and designs and manufactures its systems from Camarillo, California for motorsport, specialized and street-performance applications. Hydraulic sizing and mechanical compatibility remain decisions for the complete brake system.

Technical Details

• Manufacturer part number: 260-13623
• Material: Aluminum / Plastic
• Cylinder bore: 1-1/8"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 1.01 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 7.80"
• Mounting centers: 2.25 inches, vertical flange
• Pushrod dimensions: 4.00" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 3/8-24 banjo outlet; suitable banjo fitting is purchased separately

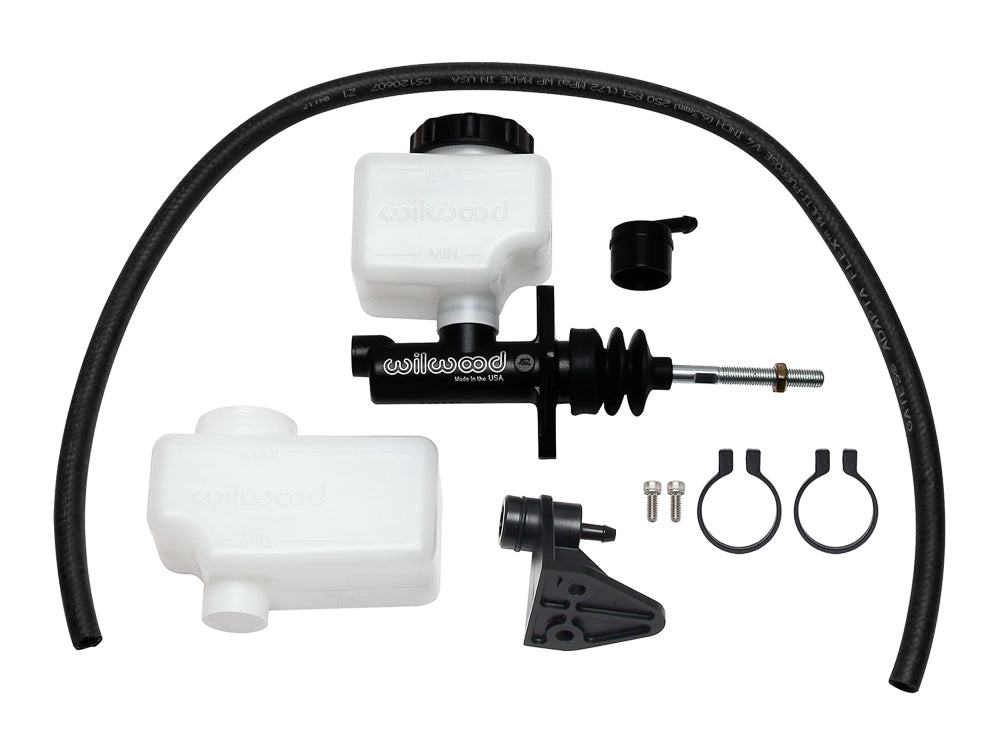

• Reservoir package: 7 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

Select this bore from the hydraulic requirements of the complete system rather than exterior size alone. Verify the 1.12-inch stroke, 2.25-inch mounting centers and threaded rod clearance, and supply the correct 3/8-24 banjo fitting separately. The reservoir hose is a low-pressure feed connection.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1057 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
