Wilwood Banjo-Port Compact Master Kit, 7/8-inch Bore, with Flange and Remote Reservoir Parts

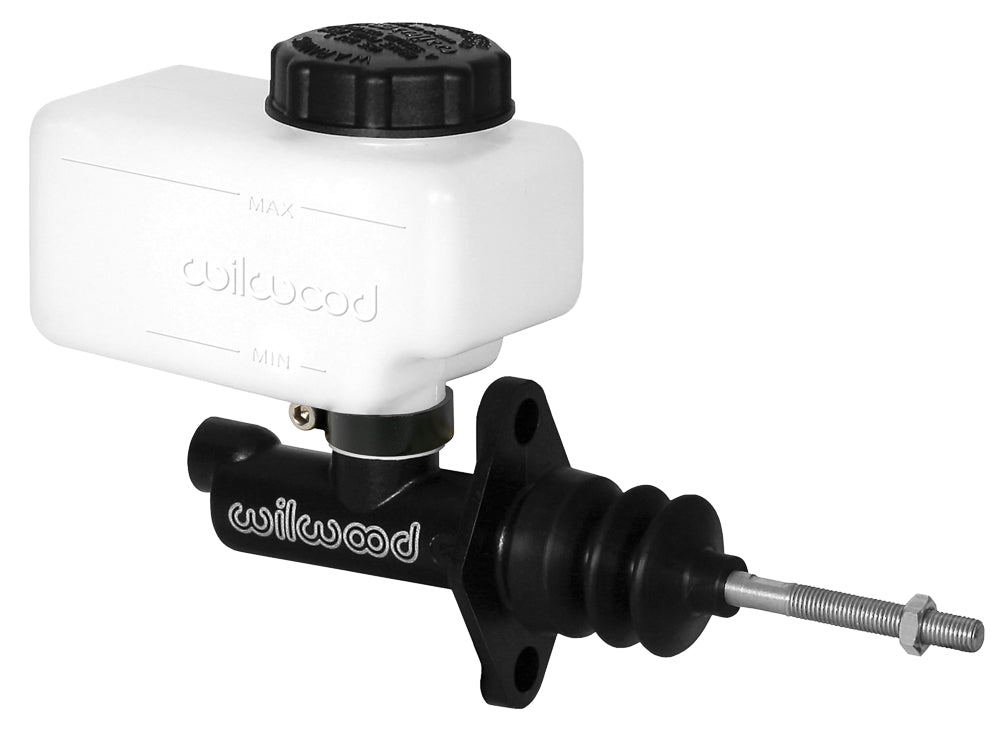

A seven-eighths-inch bore gives this Compact Remote master its specified displacement, while a banjo outlet accommodates the appropriate pressure-line fitting. The black aluminum body can carry either supplied reservoir directly or receive fluid from a remotely mounted container. Founded in 1977 by Bill Wood, Wilwood Engineering carries out disc brake design and manufacturing from Camarillo, California. Its rotors, calipers, brake lines, master cylinders, fittings and valves serve motorsport, street-performance and specialized applications. Parts within that range must be matched to one another and to the requirements of the complete braking system.

Technical Details

• Manufacturer part number: 260-13621
• Material: Aluminum / Plastic
• Cylinder bore: 7/8"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 0.67 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 7.80"
• Mounting centers: 2.25 inches, vertical flange
• Pushrod dimensions: 4.00" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 3/8-24 banjo outlet; suitable banjo fitting is purchased separately

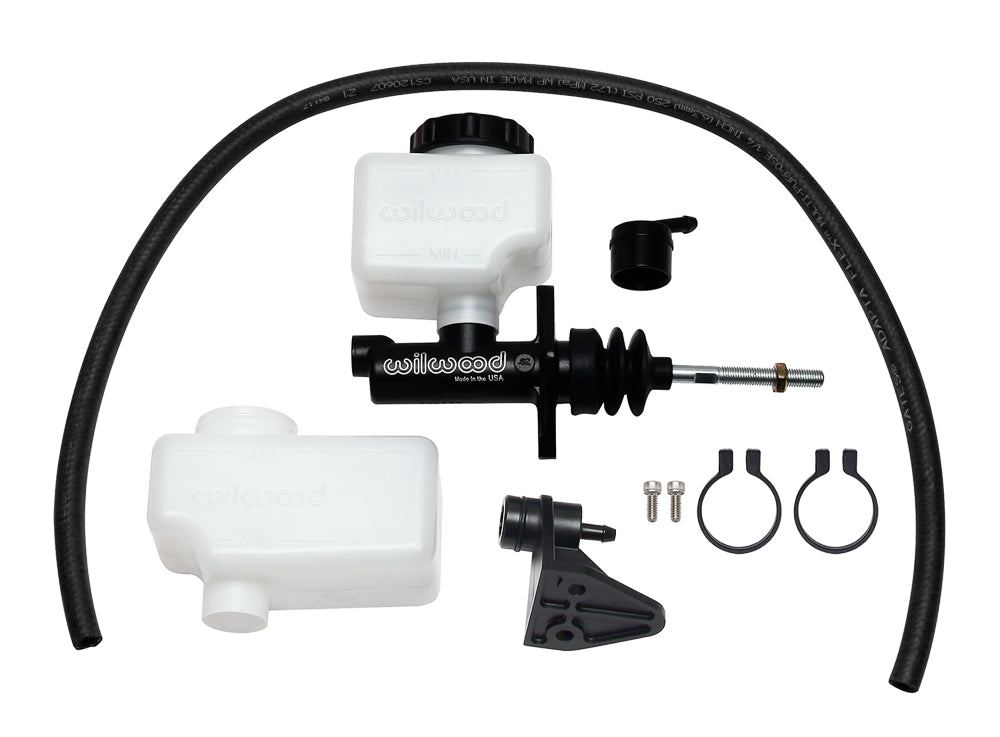

• Reservoir package: 7 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

Match the 2.25-inch flange mounting and four-inch threaded pushrod to the pedal before choosing a reservoir location. The kit includes 7- and 10-ounce containers; only the selected container is needed for a single feed. Obtain the compatible 3/8-24 banjo fitting separately and allow the piston its complete working stroke.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1057 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
