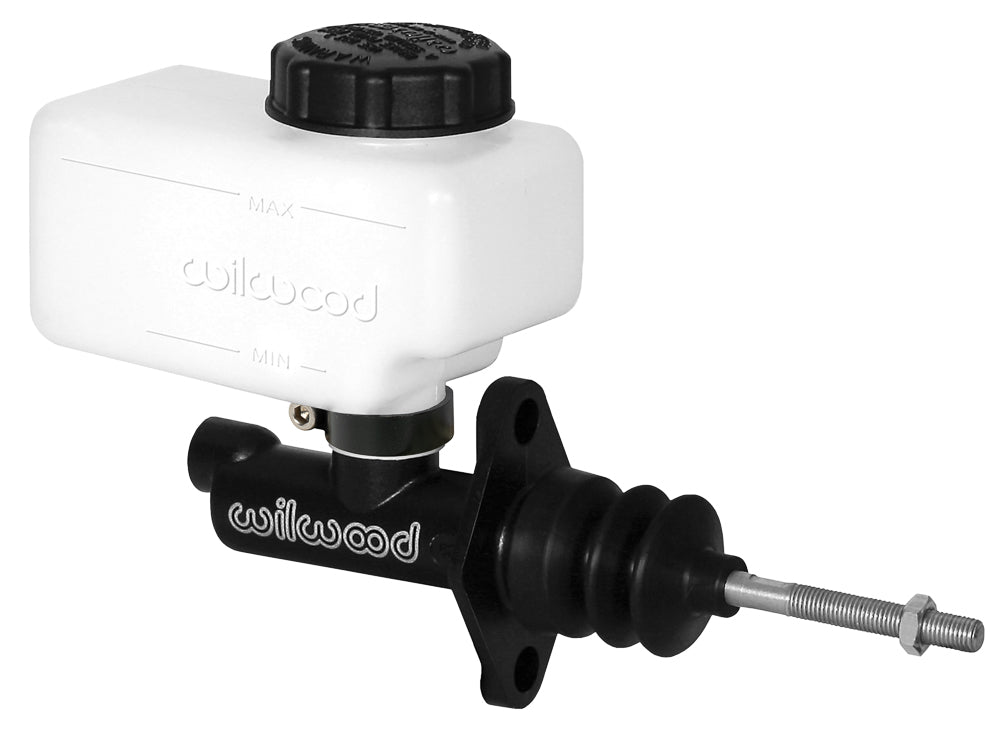

Wilwood 3/4-inch Compact Remote Master Kit with Flange Mount and Banjo Pressure Port

With a three-quarter-inch bore and black-coated aluminum cylinder, this kit supplies the compact flange master plus both reservoir options. Its banjo pressure port changes the required line connection from the pipe-thread version while retaining the compact remote-feed installation choices. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and builds disc brake systems for motorsport, street-performance and specialized applications, with a range extending through calipers, rotors, valves, brake lines, fittings and master cylinders. Individual parts must be compatible with the system in which they operate.

Technical Details

• Manufacturer part number: 260-13619
• Material: Aluminum / Plastic
• Cylinder bore: 3/4"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 0.49 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 7.80"
• Mounting centers: 2.25 inches, vertical flange
• Pushrod dimensions: 4.00" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 3/8-24 banjo outlet; suitable banjo fitting is purchased separately

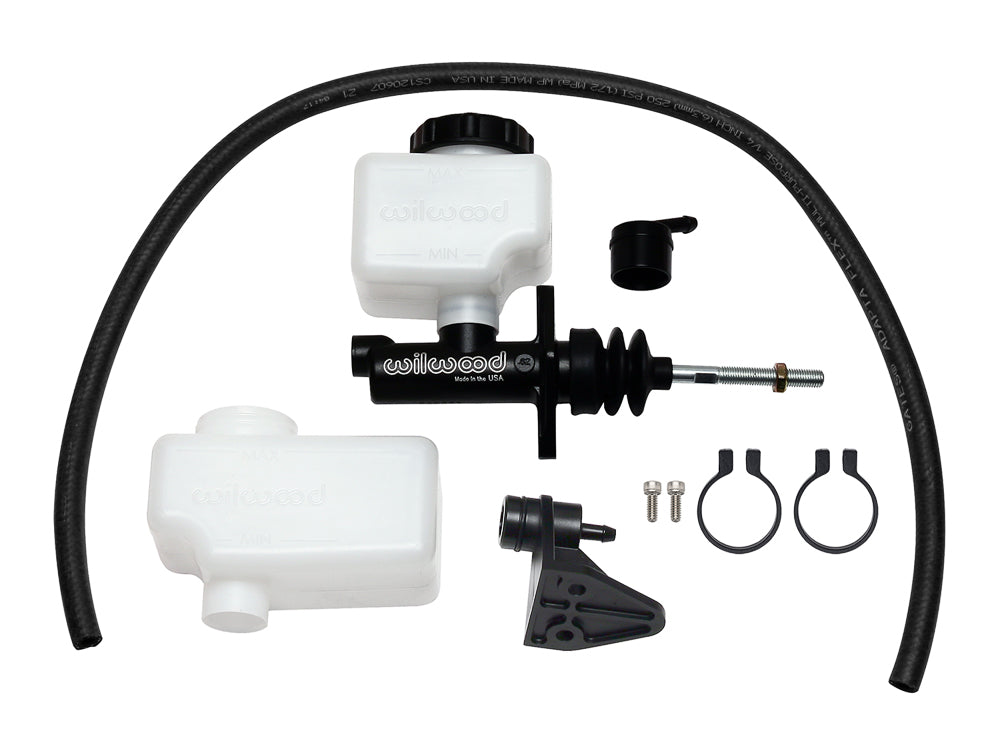

• Reservoir package: 7 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

Check the 2.25-inch mounting centers, 5/16-24 pushrod and full 1.12-inch stroke against the pedal assembly. Select the correct 3/8-24 banjo fitting separately and preserve clearance for the fitting, hose and reservoir cap. Use the fluid and bleeding procedure specified in Wilwood's instructions.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1057 instructions and specifications
• Wilwood FL162 instructions and specifications
