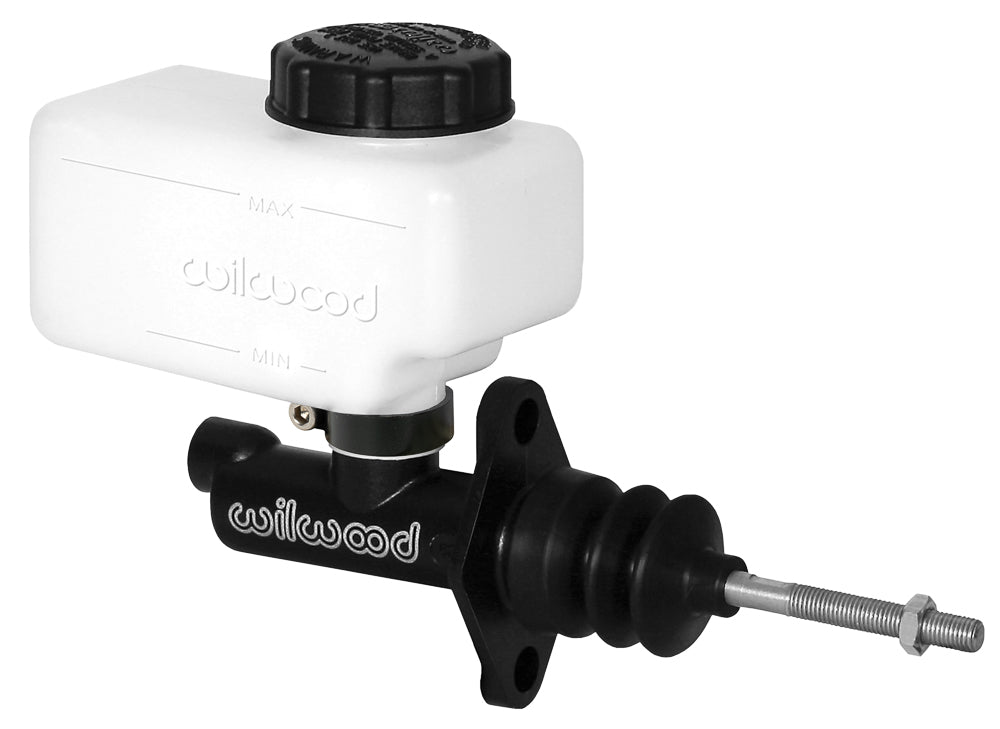

Wilwood Compact Flange Master Kit, 5/8-inch Bore and Banjo Outlet, with Two Reservoirs

The five-eighths-inch version of Wilwood's Compact Remote flange master uses a straight-thread banjo outlet. Two supplied plastic reservoirs let the installer choose a 7- or 10-ounce container and arrange it directly above the cylinder or remotely with the supplied feed hardware. Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Bill Wood founded the company in 1977; its range now encompasses calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must suit the hydraulic and mechanical requirements of the complete system.

Technical Details

• Manufacturer part number: 260-13618
• Material: Aluminum / Plastic
• Cylinder bore: 5/8"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 0.34 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 7.80"
• Mounting centers: 2.25 inches, vertical flange
• Pushrod dimensions: 4.00" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 3/8-24 banjo outlet; suitable banjo fitting is purchased separately

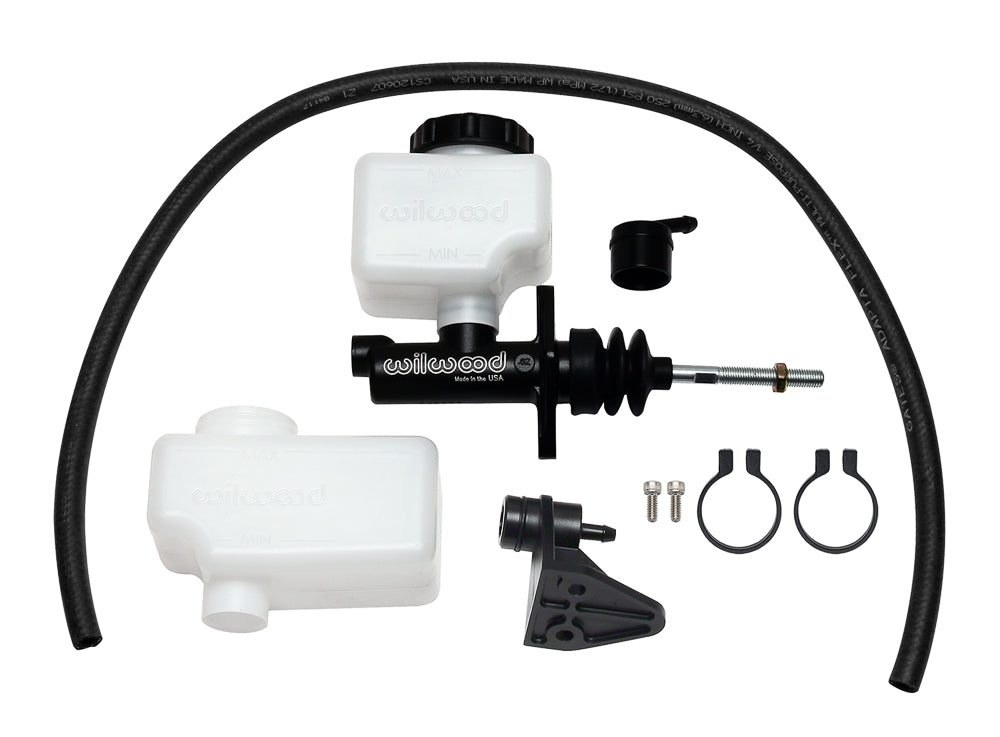

• Reservoir package: 7 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

Use the 2.25-inch flange centers and match the 1.12-inch stroke to the pedal and hydraulic demand. The 3/8-24 banjo port requires the correct banjo fitting and sealing washers, sold separately; it is not an inverted-flare outlet. Route the low-pressure reservoir hose independently of the pressurized brake or clutch line.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1057 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
