Wilwood Right-Hand ATV Master Cylinder, 19 mm Bore, for DOT 5 Fluid

A right-hand side-mount housing defines this 19 mm ATV master cylinder. Wilwood's exact ordering description specifies DOT 5, and the family uses silicone-fluid-compatible seals in these versions rather than treating all brake fluids as interchangeable. For motorsport, street-performance and specialized applications, Wilwood Engineering designs and manufactures disc brake systems and their components. The Camarillo, California company was founded by Bill Wood in 1977. Its range of rotors, calipers, valves, fittings, brake lines and master cylinders supports assemblies whose individual parts must be selected to work together.

Technical Details

• Manufacturer part number: 260-13523
• Material: Aluminum
• Cylinder bore: 19mm
• Pressure circuits: 1
• Stroke Length: 0.50 in
• Listed displacement per stroke: 0.22 cu in
• Reservoir Type: Integral
• Finish: Black Anodize
• Component: 19 mm ATV master cylinder, right hand
• Fluid specification: DOT 5, as specified for this ATV version

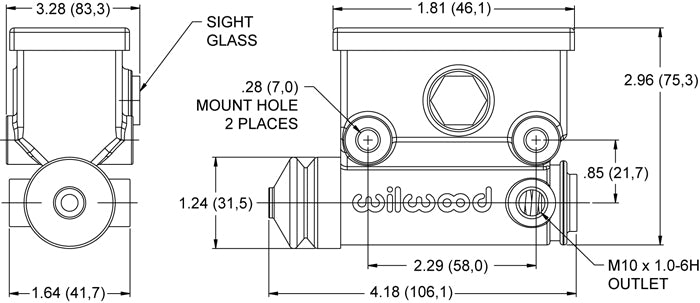

• Mounting: 2.29-inch side centers
• Pressure outlet: M10 × 1.0

Fitment & Compatibility

Match the right-hand mounting arrangement, 2.29-inch hole spacing and M10 x 1 outlet to the vehicle's hydraulic system. Use the specified DOT 5 silicone fluid and confirm the existing circuit is suitable before installation; this listing does not establish a particular ATV model fit. The aluminum body and lid have a black anodized finish.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications
• Wilwood exact part identification

The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
