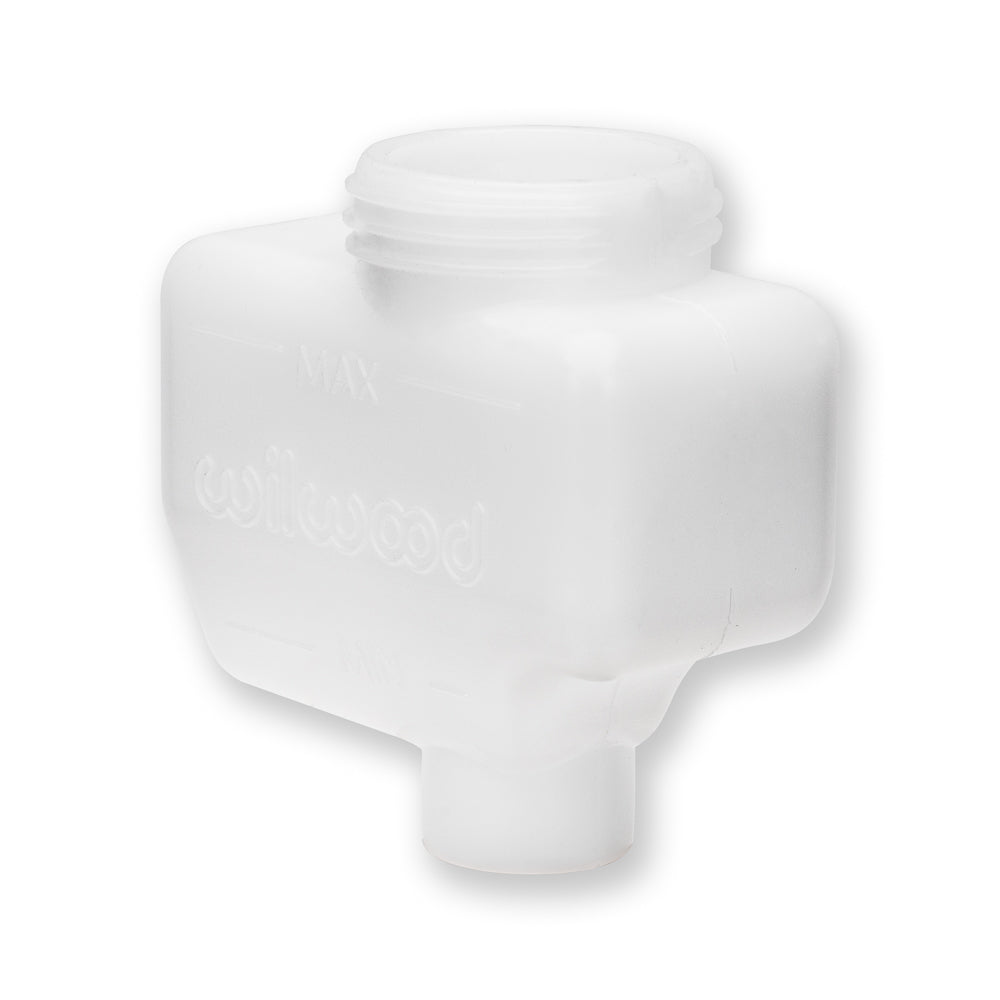

Wilwood 4.5-Ounce Plastic Reservoir Body for Compact Remote Master Cylinders

The 4.5-ounce reservoir provides the smaller fluid-container option used in specified Compact Remote installations. Its translucent molded body allows the marked fluid level to be checked while the master cylinder remains in place. Bill Wood's founding of Wilwood Engineering in 1977 established a disc brake design and manufacturing business based in Camarillo, California. Calipers, rotors, master cylinders, fittings, valves and brake lines form its range for motorsport, street-performance and specialized applications. Choosing a service component still requires checking the mating parts and overall system configuration.

Technical Details

• Manufacturer part number: 260-13107
• Material: Plastic
• Component: Replacement plastic brake-fluid reservoir body
• Nominal capacity: 4.5 oz
• Cap: Separate matching cap; not shown with the reservoir body

Fitment & Compatibility

Match the reservoir neck and clamp arrangement to the installed Compact Remote adapter or cylinder. Wilwood specifies screw cap 330-16239; verify the cap and retaining hardware when replacing the container. Capacity must satisfy the connected brake or clutch system rather than simply fit the available space.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
