Wilwood Remote Billet Reservoir Kit, Four Ounces, with Mounting Bracket and -3 AN Adapter

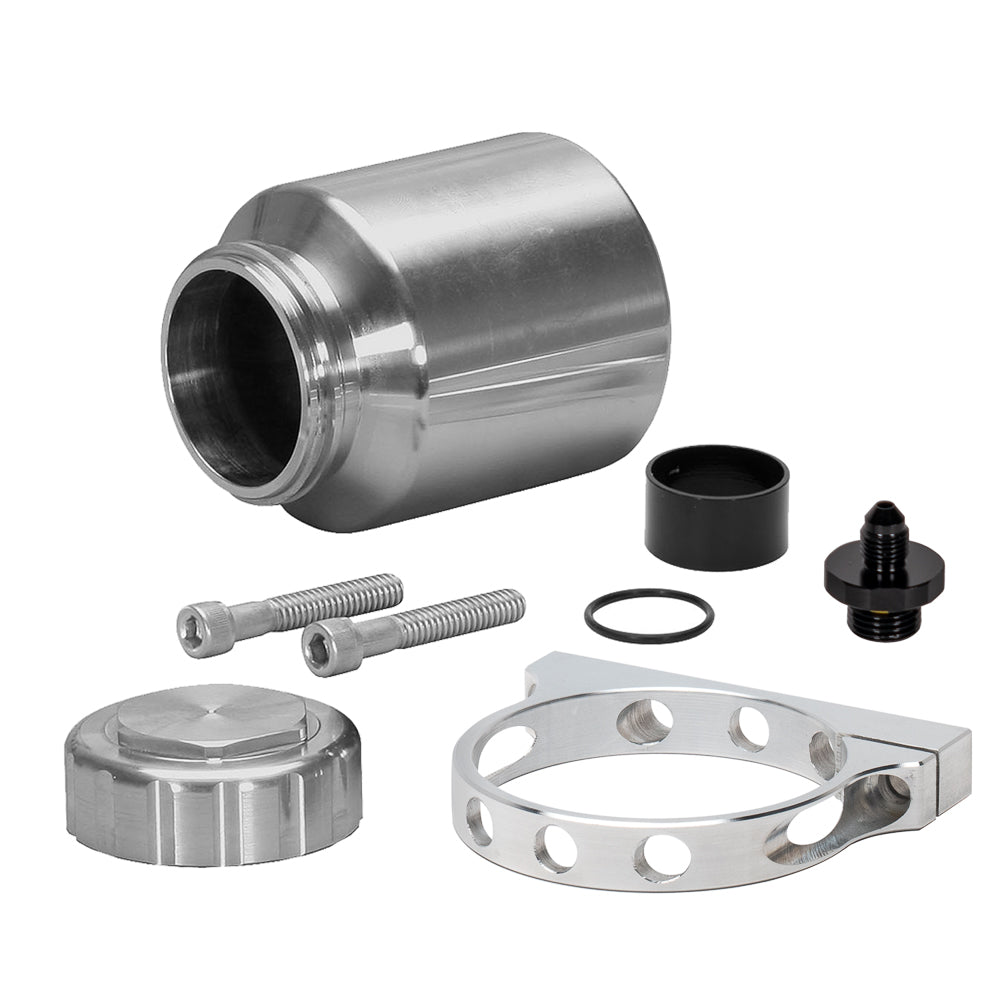

The included bracket lets this billet aluminum fluid reservoir sit remotely from the master cylinder. Its cap, seal and -3 AN connector form a four-ounce supply assembly, while the connecting hose length is selected separately for the installation. For the manufacturer Wilwood Engineering, disc brake system design and manufacturing encompass calipers, valves, fittings, master cylinders, brake lines and rotors. Bill Wood founded the Camarillo, California company in 1977. Its motorsport, specialized and street-performance applications rely on components selected with the complete brake assembly and its operating requirements in view.

Technical Details

• Manufacturer part number: 260-12697
• Material: Aluminum
• Component: 4 oz billet aluminum fluid reservoir
• Native reservoir outlet: 9/16-18
• Supplied connection: -3 AN remote-line adapter
• Supplied mounting: Reservoir bracket and screws; hose is separate
• Outside diameter: 2.45 inches
• Cap: Threaded cap and sealing components included
• Reservoir height: 4.34 inches, remote configuration

Fitment & Compatibility

Use the supplied 3/8-24-thread -3 AN fitting with a suitable reservoir-feed flexline and the correct master-cylinder inlet adapter. Check the mounting dimensions and keep the reservoir accessible for filling. This kit includes the reservoir bracket but no connecting flexline or master cylinder.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS974 instructions and specifications
• Wilwood FL317 instructions and specifications
• Wilwood FL162 instructions and specifications

The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
