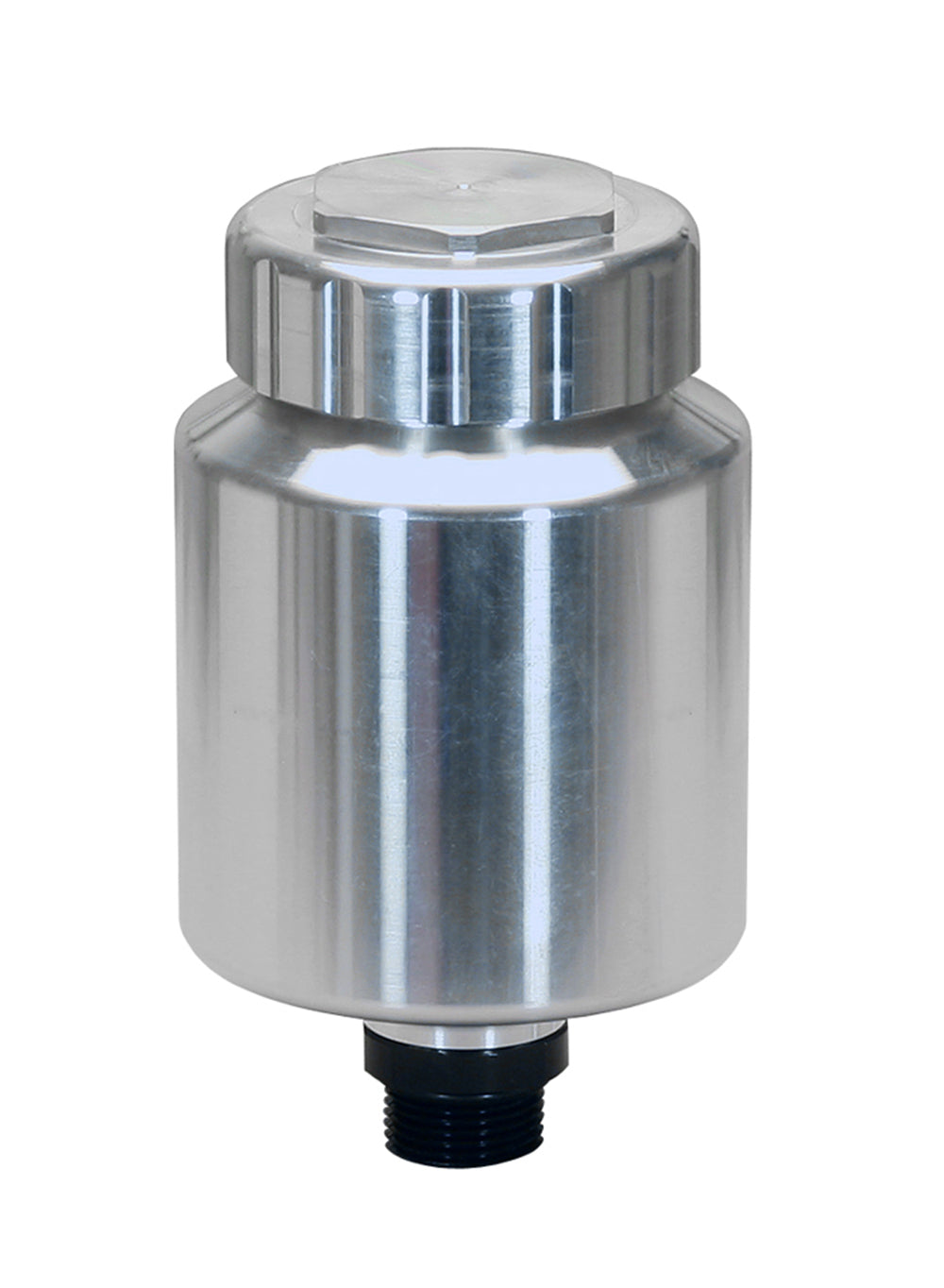

Wilwood Four-Ounce Billet Aluminum Reservoir Kit for Direct Master Cylinder Mounting

This four-ounce billet reservoir mounts directly to the documented Wilwood master-cylinder reservoir support. The kit combines the aluminum container, cap and seal with the adapter and sleeve needed to connect to the internally threaded 11/16-20 inlet. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Its fittings, valves, calipers, brake lines, master cylinders and rotors are used across motorsport, street-performance and specialized applications. Matching a component means checking both its own specification and the braking assembly around it.

Technical Details

• Manufacturer part number: 260-12696
• Material: Aluminum
• Component: 4 oz billet aluminum fluid reservoir
• Native reservoir outlet: 9/16-18
• Supplied connection: 11/16-20 direct-mount adapter
• Supplied mounting: Direct master mounting hardware
• Outside diameter: 2.45 inches
• Cap: Threaded cap and sealing components included
• Reservoir height: 4.25 inches, direct configuration

Fitment & Compatibility

For the specified Compact Remote and compatible Remote Tandem bodies with the matching threaded support. Confirm the cylinder family and room above the body for the reservoir and cap. The reservoir's native 9/16-18 connection differs from the adapter's 11/16-20 cylinder thread.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS974 instructions and specifications
• Wilwood FL317 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
