Product details

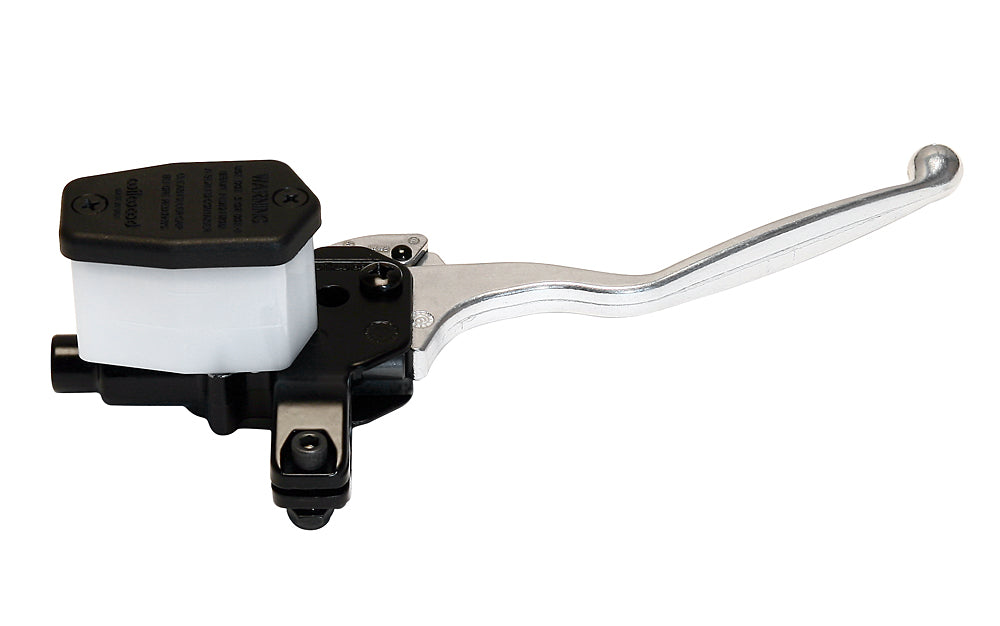

This right-hand handlebar master cylinder combines a five-eighths-inch hydraulic bore with the long aluminum lever and translucent reservoir. It clamps to a seven-eighths-inch bar for compatible recreational or specialized equipment rather than mounting to an automotive brake pedal. Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Bill Wood founded the company in 1977; its range now encompasses calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must suit the hydraulic and mechanical requirements of the complete system.
Technical Details
- Manufacturer part number: 260-11218
- Material: Aluminum / Plastic
- Cylinder bore: 5/8"
- Pressure circuits: 1
- Stroke Length: 0.45 in
- Listed displacement per stroke: 0.12 cu in
- Reservoir Type: Integral
- Overall Length: 9.85"
- Mounting centers: 7/8" Dia.
- Finish: Black E-coat
- Bar diameter: 7/8 inch
- Lever: Long lever, aluminum
- Lock: Three-position hydraulic holding mechanism
- Side: Right hand
- Connection: M10 × 1.0 banjo pressure port; accepts a separate 1/4-32 threaded brake-light switch
Fitment & Compatibility
Verify right-hand orientation, lever travel and the M10 x 1 banjo pressure connection. The body provides a 1/4-32 location for a compatible brake-light switch and the lever has the specified hydraulic brake-lock positions. Match the fluid requirements and brake displacement of the equipment.
