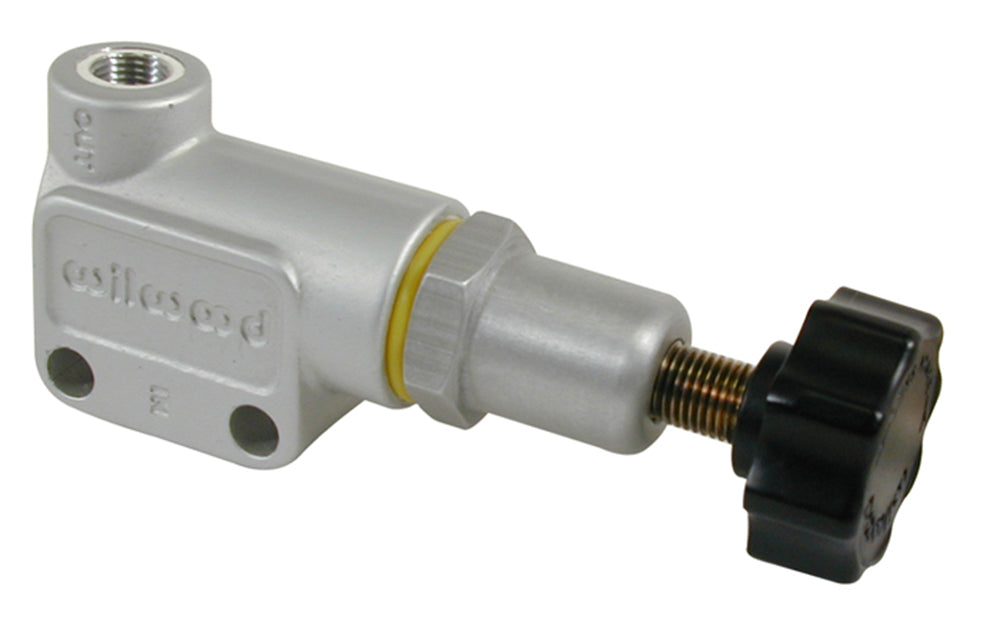

Wilwood Rear Brake Proportioning Valve, Knob Adjustable, 3/8-24 Inverted-Flare Ports

This adjustable valve reduces rear-circuit pressure to set front-to-rear brake balance in a custom system. Its 3/8-24 inverted-flare inlet and outlet accept the matching 3/16-inch double-flared brake tubing without separate tube-nut adapters. For motorsport, street-performance and specialized applications, Wilwood Engineering designs and manufactures disc brake systems and their components. The Camarillo, California company was founded by Bill Wood in 1977. Its range of rotors, calipers, valves, fittings, brake lines and master cylinders supports assemblies whose individual parts must be selected to work together.

Technical Details

• Manufacturer part number: 260-10922
• Material: Aluminum / Steel
• Finish: Clear Anodize
• Maximum pressure reduction: 57%
• Mounting: Two 0.25-inch holes on 1.00-inch centers
• Use: Custom brake-system proportioning, normally in the rear circuit; not a direct OEM replacement
• Pressure connections: 3/8-24 inverted flare directly, for 3/16-inch double-flared hard line
• Adjustment: Rotary knob

Fitment & Compatibility

Install in the designated rear pressure line with flow connected from IN to OUT. The two quarter-inch mounting holes are one inch apart. Match the inverted-flare seats rather than fitting NPT or bubble-flare connections, and determine the setting through the manufacturer's controlled testing procedure.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS931 instructions and specifications
• Wilwood FL162 instructions and specifications
