Wilwood Compact Remote Master Cylinder Repair Kit, 1-1/8-inch Bore, Piston and Boot

This 1-1/8-inch repair kit services the largest listed bore in the Compact Remote family. Its replacement piston, seals and dust-protection parts fit the identified master-cylinder designs rather than every cylinder with the same nominal diameter. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. Its disc brake design and manufacturing range includes valves, master cylinders, calipers, brake lines, rotors and fittings for street-performance, specialized and motorsport use. These parts are selected together so the completed braking system has the required hydraulic and mechanical arrangement.

Technical Details

• Manufacturer part number: 260-10518
• Component: Cylinder rebuild/service kit; replacement housing not included
• Service bore: 1-1/8"

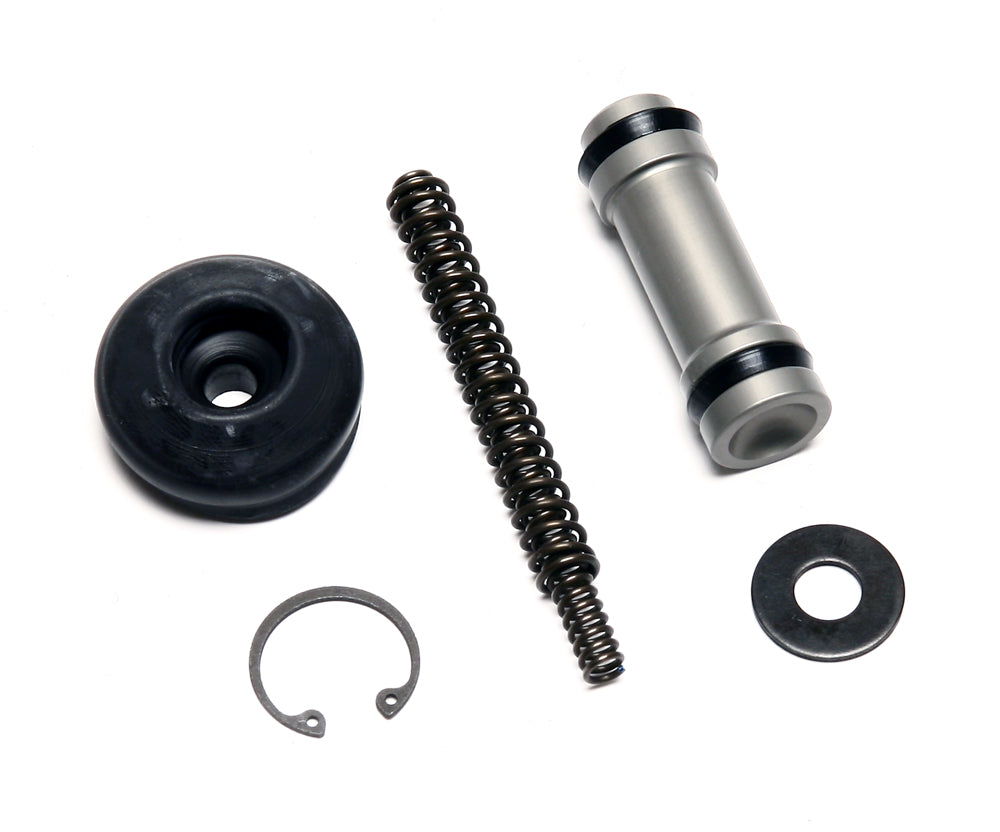

• Service components: Piston/seal assembly, spring, dust boot, retaining ring and washer
• Housing condition: Do not hone the aluminum bore; replace a damaged or corroded cylinder

Fitment & Compatibility

Match the kit to Wilwood 260-10376, 260-12389 or 260-13623 before rebuilding. The existing aluminum bore must be free from scoring and pitting; do not hone it. Use the documented assembly procedure and fully bleed the system after service.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS620 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
