Wilwood Compact Remote Master Rebuild Kit, 3/4-inch Bore, with Replacement Dust Boot

The three-quarter-inch piston assembly and seals in this kit service the matching Compact Remote cylinder family. A replacement boot and retaining components complete the maintenance package for a housing that passes bore inspection. The broader Wilwood Engineering range includes calipers, brake lines, rotors, valves, fittings and master cylinders for disc brake systems. Established by Bill Wood in 1977 and based in Camarillo, California, Wilwood designs and manufactures for motorsport, street-performance and specialized applications. Correct component selection considers the complete system's geometry and hydraulic requirements.

Technical Details

• Manufacturer part number: 260-10514
• Component: Cylinder rebuild/service kit; replacement housing not included
• Service bore: 3/4"

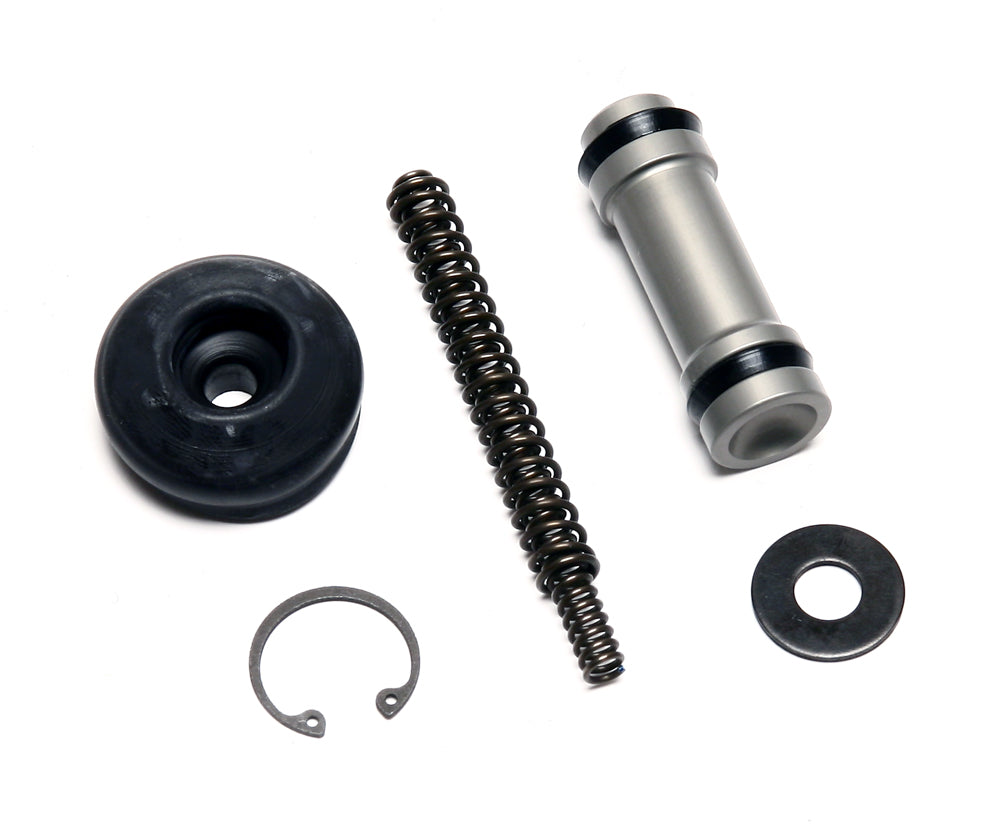

• Service components: Piston/seal assembly, spring, dust boot, retaining ring and washer
• Housing condition: Do not hone the aluminum bore; replace a damaged or corroded cylinder

Fitment & Compatibility

For Wilwood 260-10372, 260-12385 and 260-13619 master cylinders. Equal bore diameter alone does not establish compatibility with other master-cylinder designs. Do not hone an aluminum bore to repair damage; use a complete replacement cylinder if it is scored or pitted.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS620 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
