Wilwood 1-1/8-inch Compact Master Cylinder Kit with Black Body and Remote-Mount Hardware

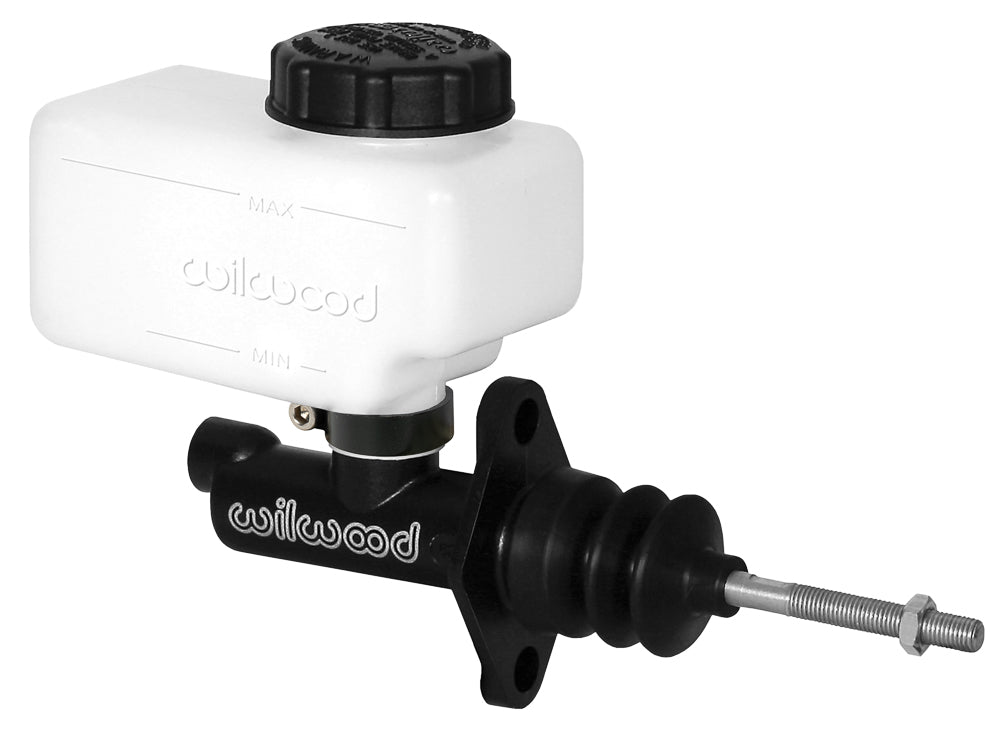

This 1-1/8-inch version provides the largest bore in the specified Compact Remote family while keeping the same flange footprint. Its single pressure circuit can be supplied by either included plastic reservoir, mounted on the body or located remotely with the supplied hose and bracket. Bill Wood's founding of Wilwood Engineering in 1977 established a disc brake design and manufacturing business based in Camarillo, California. Calipers, rotors, master cylinders, fittings, valves and brake lines form its range for motorsport, street-performance and specialized applications. Choosing a service component still requires checking the mating parts and overall system configuration.

Technical Details

• Manufacturer part number: 260-10376
• Material: Aluminum / Plastic
• Cylinder bore: 1-1/8"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 1.01 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 7.80"
• Mounting centers: 2.25 inches, vertical flange
• Pushrod dimensions: 4.00" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 1/8-27 NPT outlet; select the appropriate pressure-line adapter

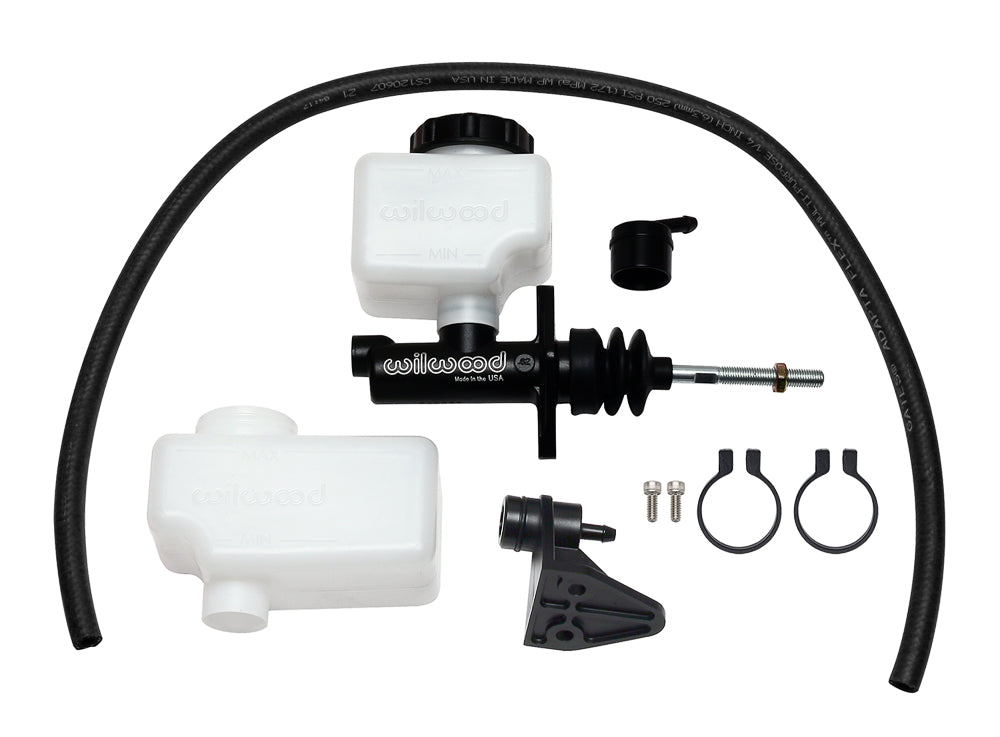

• Reservoir package: 7 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

The larger bore must be matched to the intended pedal ratio, calipers and available travel. Verify 2.25-inch flange centers, 5/16-24 pushrod engagement and 1/8-27 NPT outlet plumbing. Follow the installation sheet's reservoir-placement, bleeding and brake-fluid requirements.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS608 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
