Wilwood Compact Master Cylinder and Remote Reservoir Kit, 3/4-inch Bore, Black E-Coat

This three-quarter-inch Compact master kit combines a single hydraulic outlet with a choice of reservoir positions. Its black-coated aluminum cylinder has a 1.12-inch stroke and is supplied with seven- and ten-ounce containers for selecting the required fluid capacity. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems. Its Camarillo, California operation supplies master cylinders, brake lines, valves, rotors, fittings and calipers for specialized applications as well as motorsport and street-performance vehicles. Replacement and conversion parts need to match the complete braking arrangement.

Technical Details

• Manufacturer part number: 260-10372
• Material: Aluminum / Plastic
• Cylinder bore: 3/4"
• Pressure circuits: 1
• Stroke Length: 1.12 in
• Listed displacement per stroke: 0.49 cu in
• Reservoir Type: Remote
• Flange-to-end length: 3.37"
• Overall Length: 7.80"
• Mounting centers: 2.25 inches, vertical flange
• Pushrod dimensions: 4.00" x 5/16-24
• Finish: Black E-coat
• Inlet arrangement: 0.87-inch seating diameter with 11/16-20 internal thread; this is the reservoir feed, not the pressure outlet
• Pressure connection: 1/8-27 NPT outlet; select the appropriate pressure-line adapter

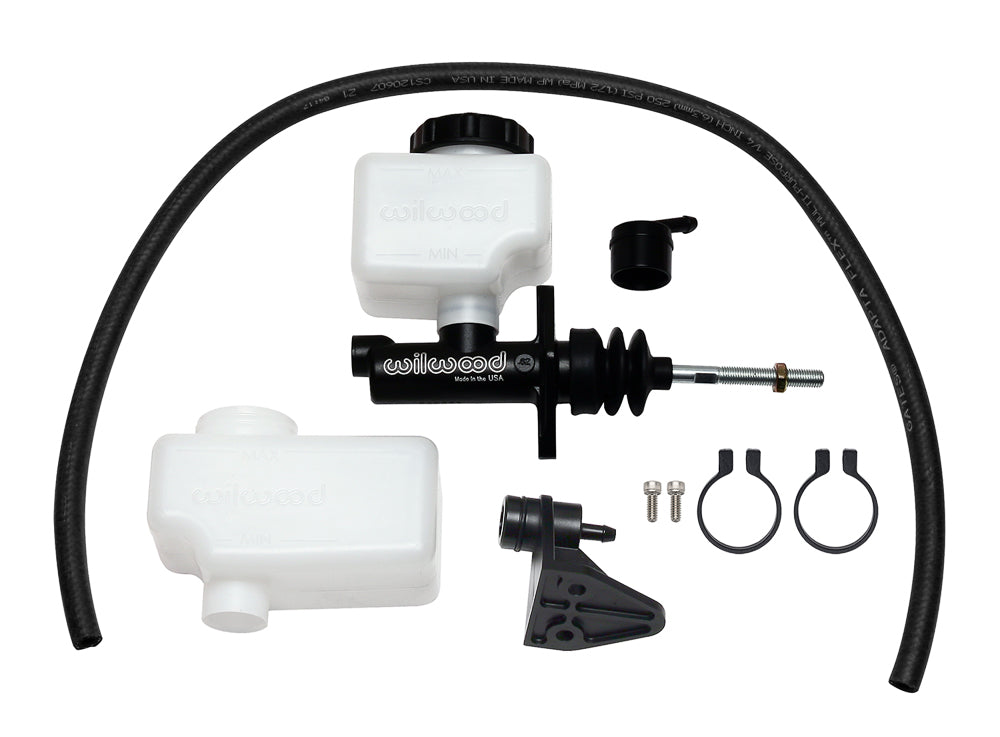

• Reservoir package: 7 and 10 oz plastic reservoir bodies, cap, remote hose, adapters, clamps and bracket hardware
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for racing/performance use; DOT 5 silicone is not recommended for those uses

Fitment & Compatibility

The pedal must accommodate the cylinder's full stroke and permit the pushrod to return completely. Verify the flange spacing, 5/16-24 rod connection and 1/8-27 NPT pressure outlet; the remote hose is a reservoir-feed line rather than a high-pressure brake hose.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS608 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
