Product details

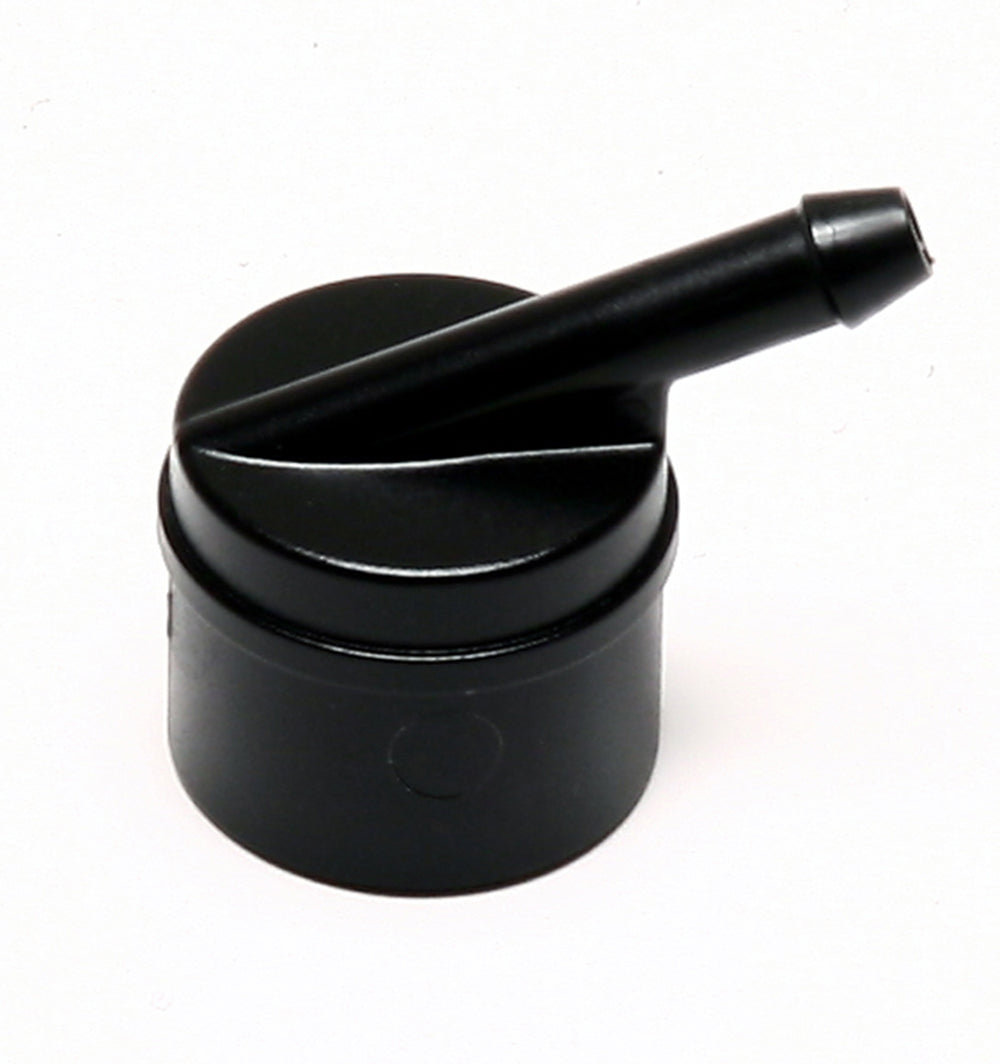

This plastic adapter replaces the direct reservoir connection with a hose-fed inlet on a compatible Compact Remote master cylinder. The angled hose spigot routes the low-pressure supply line from a separately mounted reservoir. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Its fittings, valves, calipers, brake lines, master cylinders and rotors are used across motorsport, street-performance and specialized applications. Matching a component means checking both its own specification and the braking assembly around it.
Technical Details
- Manufacturer part number: 260-10264
- Material: Plastic
- Component: Low-pressure plastic remote-reservoir feed adapter
- Hose connection: 1/4-inch hose
- Master inlet seat: 0.87-inch diameter
Fitment & Compatibility
Match the Compact Remote adapter seating profile and use the specified clamp and quarter-inch fluid-feed hose. The 0.87-inch inlet dimension is a size reference, not a pipe-thread designation; this adapter does not fit a pressurized brake-line outlet.
Manufacturer Documents
PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
