Wilwood Seven-Ounce Plastic Replacement Reservoir for Compact Remote Master Cylinders

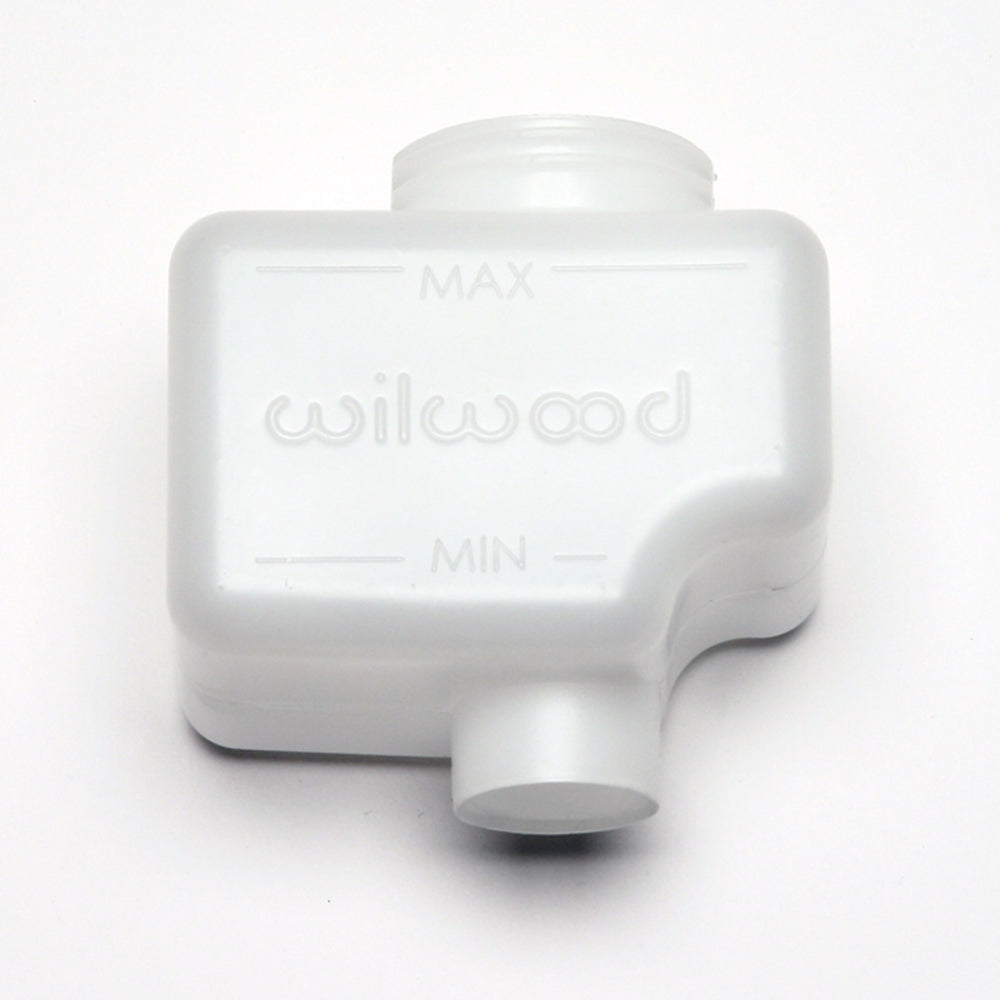

The seven-ounce plastic reservoir replaces the smaller container used with Wilwood Compact Remote master cylinders. Its molded fluid-level marks make the operating range visible, and its screw-cap neck differs from the clamp connection at the cylinder or remote adapter. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and builds disc brake systems, with calipers, master cylinders, rotors, brake lines, fittings and valves serving street-performance, motorsport and specialized applications. Selecting an individual part requires checking how it works with the rest of the braking assembly.

Technical Details

• Manufacturer part number: 260-10204
• Material: Plastic
• Component: Replacement plastic brake-fluid reservoir body
• Nominal capacity: 7 oz
• Cap: Separate matching cap; not shown with the reservoir body

Fitment & Compatibility

Match the Compact Remote reservoir connection and mounting arrangement. The compatible cap is 330-16239; the cap, clamps and adapters should be checked separately when replacing the reservoir body. It is not a complete master cylinder or a universal threaded fluid tank.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
