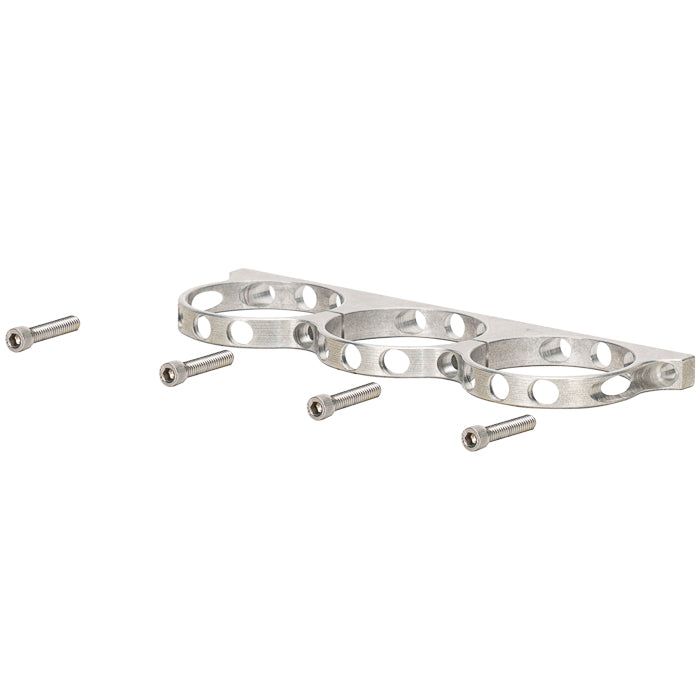

Wilwood Triple Billet Reservoir Bracket Kit, Bare Aluminum, 8.35-inch Outer Mount Centers

Three clamping positions allow separate fluid reservoirs to be grouped on this bare aluminum support. It is intended for matching Wilwood billet containers, with an 8.35-inch span between the outer mounting holes. Wilwood Engineering's disc brake systems bring together calipers, rotors, valves, master cylinders, fittings and brake lines. Founded by Bill Wood in 1977 and based in Camarillo, California, the company designs and manufactures products for motorsport, street-performance and specialized applications. The installed system determines which individual component is appropriate.

Technical Details

• Manufacturer part number: 250-16873
• Material: Aluminum
• Mounting centers: 8.35 inches
• Finish: Bare
• Component: Billet reservoir mounting bracket with fastening screws
• Reservoir positions: 3
• Reservoir body diameter: Nominal 2.45 inches
• Supplied: Bracket and screws only; reservoirs and hoses are separate

Fitment & Compatibility

Confirm space for the approximately 8.9-inch bracket width, three nominal 2.45-inch reservoirs and their hose connections. The supplied bracket and screws do not establish the hydraulic circuit arrangement; reservoirs, hoses and cylinders must be selected separately.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1448 instructions and specifications
• Wilwood FL162 instructions and specifications

The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
