Wilwood Single Reservoir Mounting Clamp Kit, Type III Anodized, for Billet Reservoirs

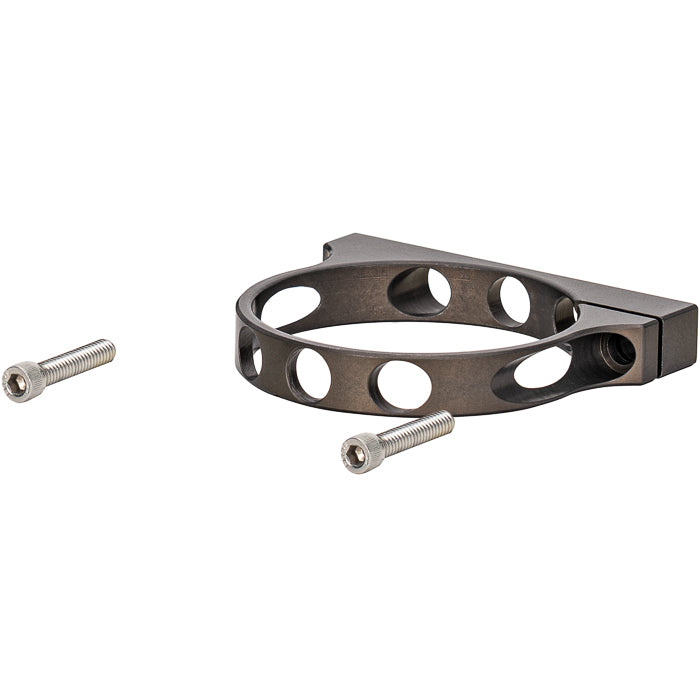

This single-reservoir clamp gives a remote fluid container its own mounting point without the width of a multi-reservoir bracket. The aluminum body has Type III anodizing and is supplied with the screws shown for bracket assembly. Founded in 1977 by Bill Wood, Wilwood Engineering carries out disc brake design and manufacturing from Camarillo, California. Its rotors, calipers, brake lines, master cylinders, fittings and valves serve motorsport, street-performance and specialized applications. Parts within that range must be matched to one another and to the requirements of the complete braking system.

Technical Details

• Manufacturer part number: 250-16872
• Material: Aluminum
• Mounting centers: 2.75 inches
• Finish: Type III Ano
• Component: Billet reservoir mounting bracket with fastening screws
• Reservoir positions: 1
• Reservoir body diameter: Nominal 2.45 inches
• Supplied: Bracket and screws only; reservoirs and hoses are separate

Fitment & Compatibility

Suitable for the specified 2.45-inch Billet or Lightweight Billet reservoir bodies. Two mounting holes are spaced 2.75 inches apart; choose a location that supports the reservoir securely and permits cap removal. No reservoir or plumbing is included.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1448 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
