Wilwood Anodized Two-Reservoir Bracket Kit for Billet Master Cylinder Reservoirs

A Type III anodized finish distinguishes this dual reservoir support from the bare aluminum version. It clamps two compatible billet reservoir bodies side by side and includes mounting screws for the remote installation. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and builds disc brake systems for motorsport, street-performance and specialized applications, with a range extending through calipers, rotors, valves, brake lines, fittings and master cylinders. Individual parts must be compatible with the system in which they operate.

Technical Details

• Manufacturer part number: 250-16393
• Material: Aluminum
• Mounting centers: 5.75 inches
• Finish: Type III Ano

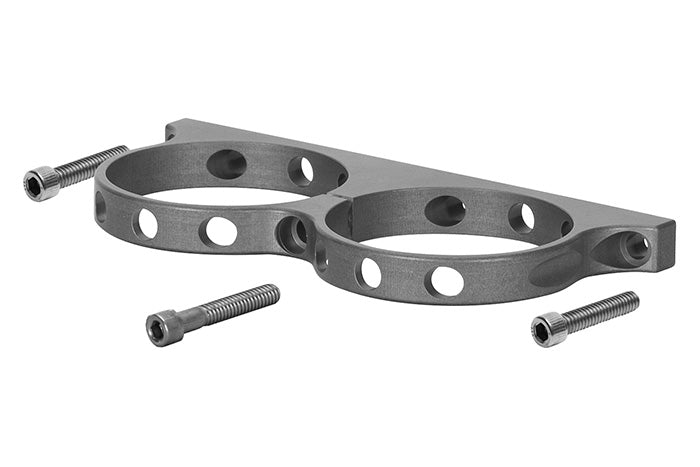

• Component: Billet reservoir mounting bracket with fastening screws
• Reservoir positions: 2
• Reservoir body diameter: Nominal 2.45 inches
• Supplied: Bracket and screws only; reservoirs and hoses are separate

Fitment & Compatibility

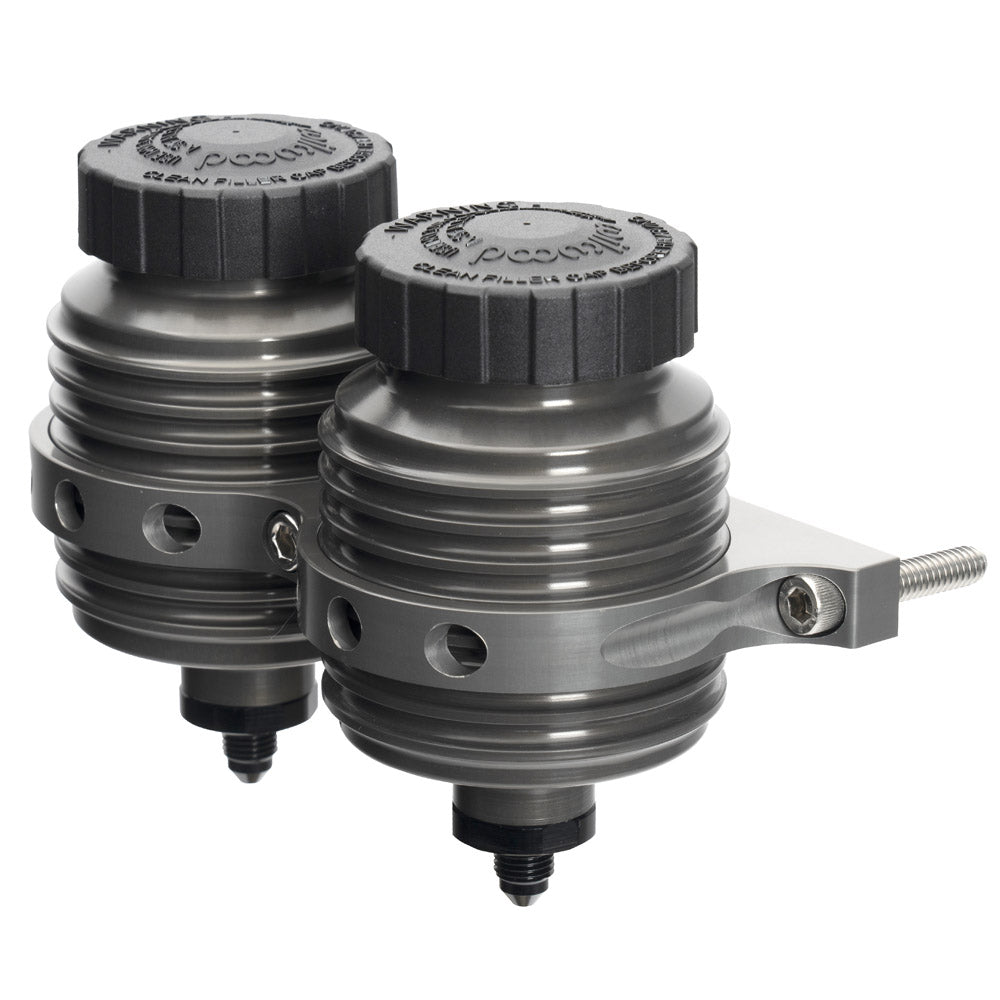

Match the nominal 2.45-inch reservoir diameter, 5.75-inch mounting centers and 6.25-inch bracket width. The assembled photograph illustrates separately available reservoirs; this item supplies the bracket and screws only.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1448 instructions and specifications
• Wilwood FL162 instructions and specifications

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
