Wilwood Dual Billet Reservoir Mounting Bracket, Bare Aluminum, 5.75-inch Centers

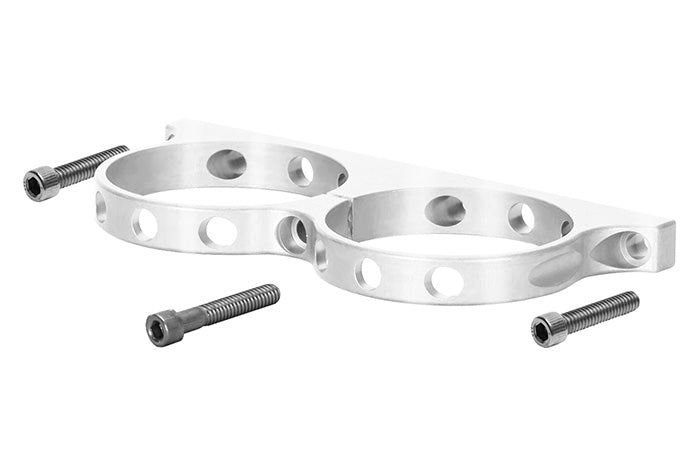

This bare aluminum bracket supports two Wilwood Billet or Lightweight Billet fluid reservoirs as a remote assembly. The paired clamps accept nominal 2.45-inch reservoir bodies, while the mounting screws attach the bracket to a suitable support. Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Bill Wood founded the company in 1977; its range now encompasses calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must suit the hydraulic and mechanical requirements of the complete system.

Technical Details

• Manufacturer part number: 250-16327
• Material: Aluminum
• Mounting centers: 5.75 inches
• Finish: Bare
• Component: Billet reservoir mounting bracket with fastening screws
• Reservoir positions: 2
• Reservoir body diameter: Nominal 2.45 inches
• Supplied: Bracket and screws only; reservoirs and hoses are separate

Fitment & Compatibility

Use with the specified round billet reservoirs and provide clearance to remove both caps. The bracket kit does not include reservoirs, hoses or master cylinders; confirm the 5.75-inch mounting-hole spacing and the strength of the mounting surface.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1448 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
