Product details

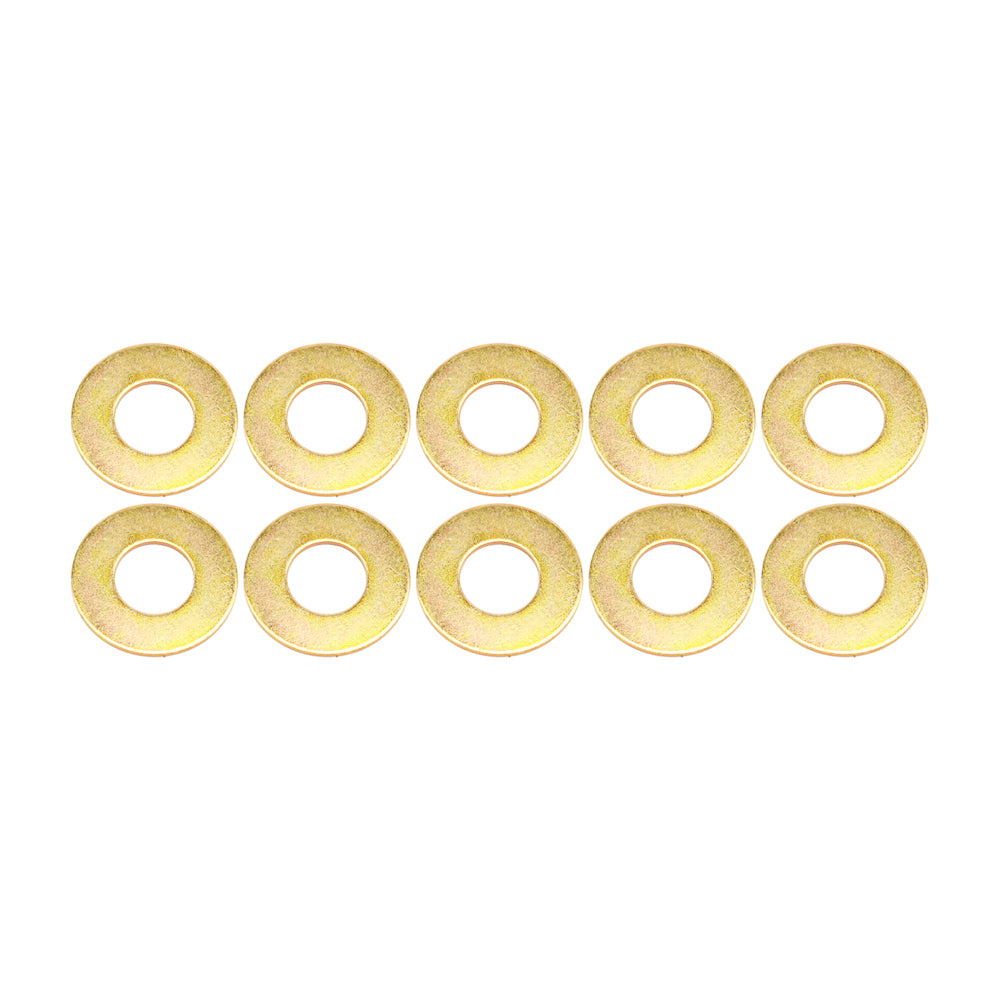

Each shim in this ten-piece pack is 0.033 inch thick, with a 0.483-inch hole and 1.031-inch outside diameter. Carbon steel and a zinc Type II gold finish suit the specified alignment hardware application. This component comes from Wilwood Engineering's disc brake program, designed and manufactured for motorsport, street-performance and specialized applications. Bill Wood established the company in 1977; it is based in Camarillo, California. The range spans calipers, rotors, master cylinders, valves, fittings and brake lines, whose selection depends on the requirements of the complete braking system.
Technical Details
- Manufacturer part number: 240-6320-10
- Outside diameter: 1.031 in
- Inside diameter: 0.483 in
- Thickness: 0.033 in
- Finish: Zinc
- Component quantity: 10 shims
- Material: Alloy Steel
- Washer type: Flat
Fitment & Compatibility
Measure the clearance and support area required at the intended joint. In particular, a 0.483-inch hole should not be assumed to clear a half-inch bolt; use the actual dimensions when selecting the shim.
Wilwood product specifications
Use PMB Performance's more than 20 years of parts experience to confirm the assembly details before ordering; the original component number and measurements are useful starting points.
