Product details

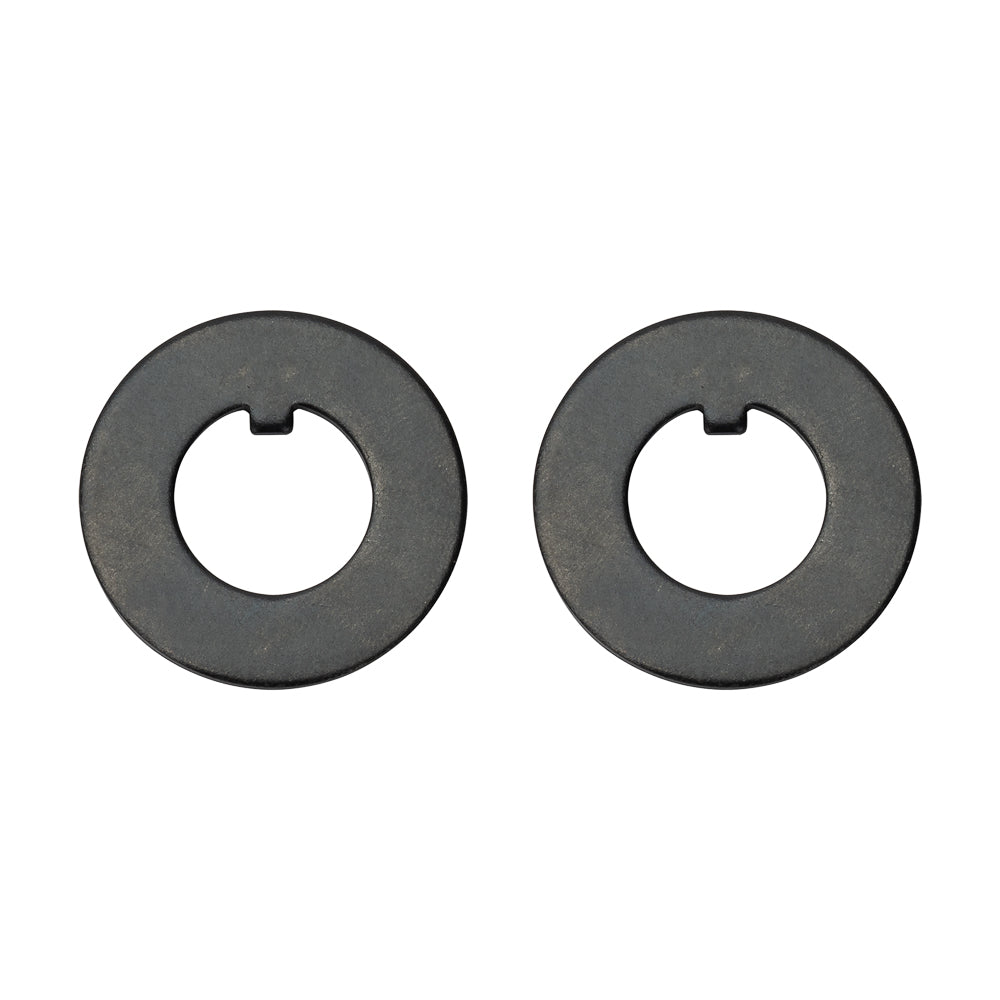

These keyed spindle washers belong under the retaining hardware on the specified early Ford/Chevrolet three-quarter-inch spindle arrangement. The pair has a 0.750-inch bore, 1.500-inch outside diameter and 0.090-inch thickness with a black-oxide finish. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components for street-performance, specialized applications and motorsport. Its master cylinders, calipers, rotors, brake lines, valves and fittings must be chosen to work together within the complete system.
Technical Details
- Manufacturer part number: 240-2283-2
- Outside diameter: 1.500 in
- Inside diameter: 0.750 in
- Thickness: 0.090 in
- Finish: Black Oxide
- Component quantity: 2 washers
- Material: Alloy Steel
- Washer type: Spindle
Fitment & Compatibility
Confirm the spindle's keyway and bearing-retention design, including the exact dimensions. The early Ford/Chevrolet description identifies a spindle family, not universal coverage for every model from either make.
Wilwood product specifications
PMB Performance's 20+ years of experience can help with the details that determine fit. Supply the brake assembly number and the dimensions of the parts being replaced.
