Product details

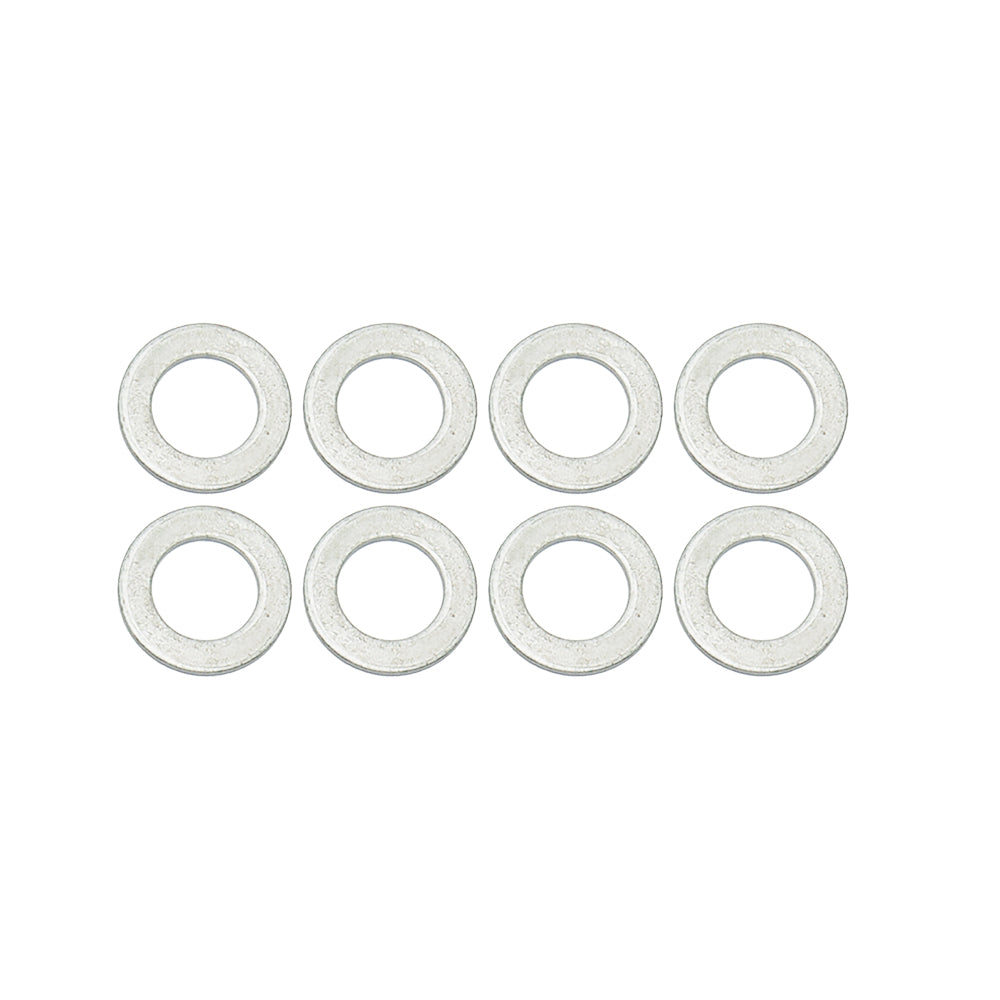

The AN960-716 washer format provides a 0.453-inch bore and a three-quarter-inch outside diameter. This eight-piece hardened-steel set is 0.063 inch thick and uses the silver finish specified in Wilwood's ordering description. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Calipers, rotors, master cylinders, fittings, brake lines and valves form its range for motorsport, specialized and street-performance use; individual parts must match the requirements of the complete system.
Technical Details
- Manufacturer part number: 240-11101-8
- Material: Alloy Steel
- Washer type: Flat
- Outside diameter: 0.750 in
- Inside diameter: 0.453 in
- Thickness: 0.063 in
- Finish: Dacromet
- Component quantity: 8 washers
- AN 960-716 dimensions with HRc 38–45 hardness and WES 072 Class 2 silver finish.
Fitment & Compatibility
Compare the washer's support diameter with the mounting surface and bolt head. Use only the thickness and hardness specified for the joint; these are load-bearing flat washers rather than hydraulic seals.
Wilwood product specifications
Use PMB Performance's more than 20 years of parts experience to confirm the assembly details before ordering; the original component number and measurements are useful starting points.
