Product details

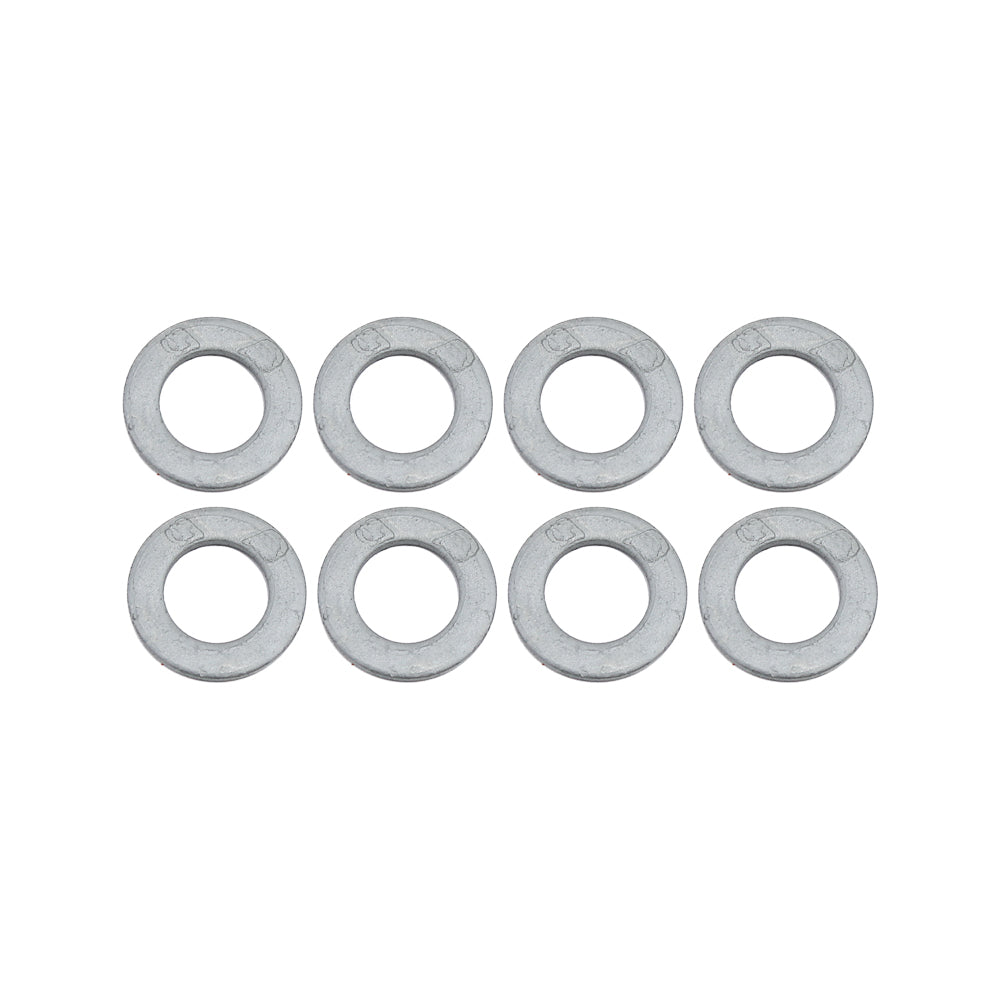

This eight-piece washer set uses the compact AN960-516 format for the specified mounting hardware. A 0.328-inch inside diameter, 0.562-inch outside diameter and 0.063-inch thickness define the bearing surface and clearance. Wilwood Engineering, established in 1977 by Bill Wood and based in Camarillo, California, designs and manufactures disc brake systems and components. The range covers calipers, master cylinders, rotors, valves, fittings and brake lines for street-performance, motorsport and specialized applications; component selection must account for the entire system.
Technical Details
- Manufacturer part number: 240-10191-8
- Component quantity: 8 washers
- Material: Alloy Steel
- Washer type: Flat
- Outside diameter: 0.562 in
- Inside diameter: 0.328 in
- Thickness: 0.063 in
- Finish: Dacromet
- Washer standard: AN 960-516; HRc 38–45 hardness; WES 072 Class 2 silver finish.
Fitment & Compatibility
Match the fastener and available seating area before assembly. Retain the prescribed washer thickness so the joint's thread engagement and clamped stack remain correct.
Wilwood product specifications
For help matching the service part to your brake assembly, contact PMB Performance with its identification and dimensions. Our team draws on over 20 years of experience.
