Product details
These stainless twelve-point bolts and washers serve the specified rotor-to-hat connection. Wilwood lists 1/4-28 threads and a 0.750-inch length, but the eight-pack ordering description conflicts with a twelve-bolt quantity field. Wilwood Engineering's disc brake range encompasses calipers, rotors, master cylinders, valves, fittings and brake lines. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures these systems and components for motorsport, street-performance and specialized applications, treating each part as a selection within a complete brake system.
Technical Details
- Manufacturer part number: 230-7011
- Head form: 12 Point
- Drive: 12 Point
- Listed fastener length: 0.750 in
- Thread: 1/4-28
- Washer type: Flat
- Safety-wire drilling: Yes
- Finish: Plain
- Material: Stainless steel
- Grade: 18-8

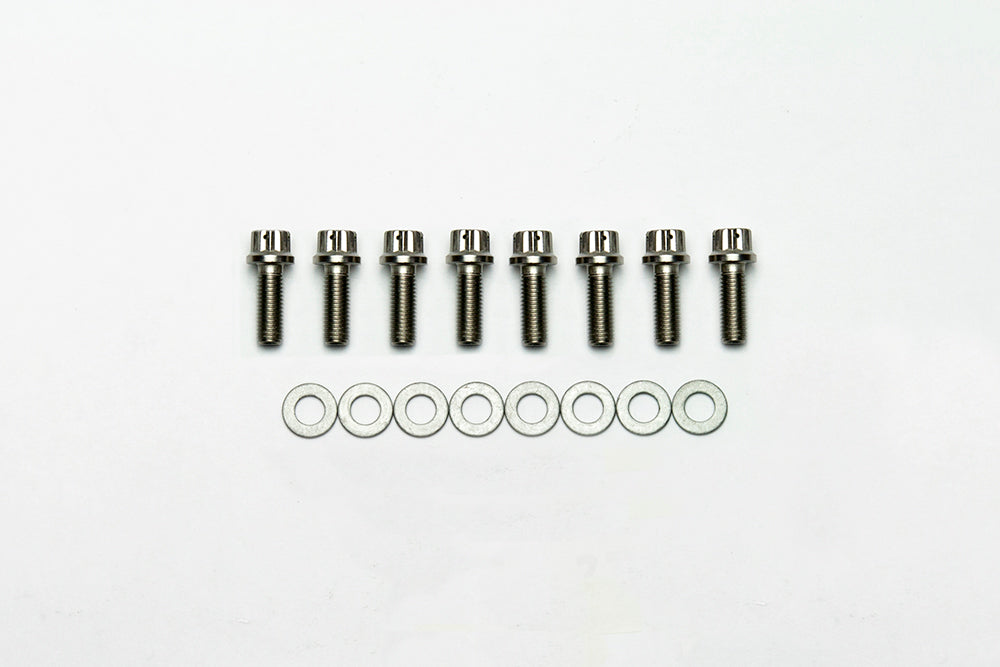

- Package quantity requires confirmation: ordering text 8-pack; product quantity field 12; photograph shows 8 bolts.
Fitment & Compatibility
Confirm the supplied bolt count with Wilwood before ordering enough hardware for the rotor. The product photograph shows eight bolts and washers; use that as a reason to verify the discrepancy, not as a guaranteed packing count.
Wilwood product specifications
PMB Performance's 20+ years of experience can help with the details that determine fit. Supply the brake assembly number and the dimensions of the parts being replaced.
