Product details

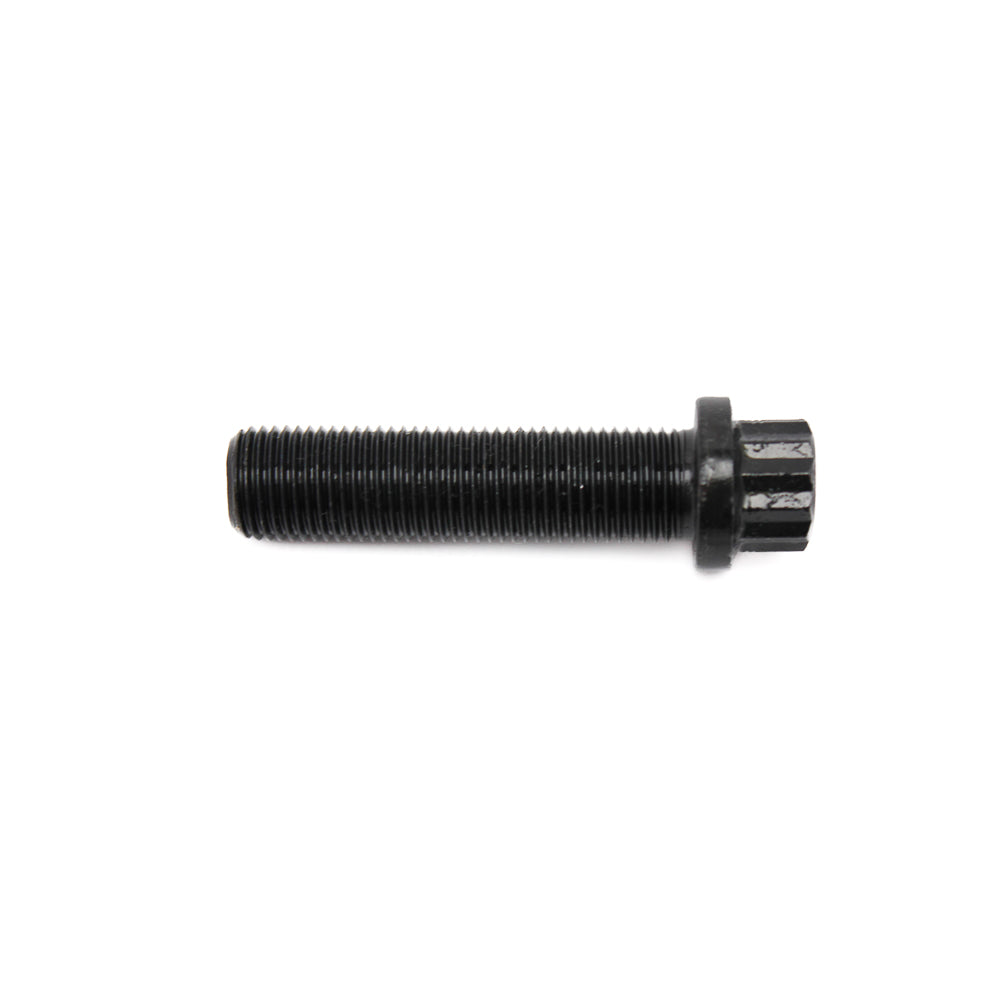

A two-inch length and fully threaded 1/2-20 shank identify this individual HD hub wheel stud. The twelve-point head belongs to the screw-in arrangement specified for the matching Wilwood hub. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Calipers, rotors, master cylinders, fittings, brake lines and valves form its range for motorsport, specialized and street-performance use; individual parts must match the requirements of the complete system.
Technical Details
- Manufacturer part number: 230-6959
- Component quantity: 1 stud
- Material: Alloy Steel
- Grade: Grade 8
- Head form: 12 Point
- Drive: 12 Point
- Listed fastener length: 2.000 in
- Thread: 1/2-20
- Safety-wire drilling: No
- Finish: Black Oxide
Fitment & Compatibility
Check the hub's service fastener and the complete wheel-and-nut stack. Ensure the specified thread engagement at the hub as well as adequate projection through the wheel.
Wilwood product specifications
PMB Performance can help review the mating components before you order, with more than 20 years of experience working with brake parts and their fitment.
