Product details

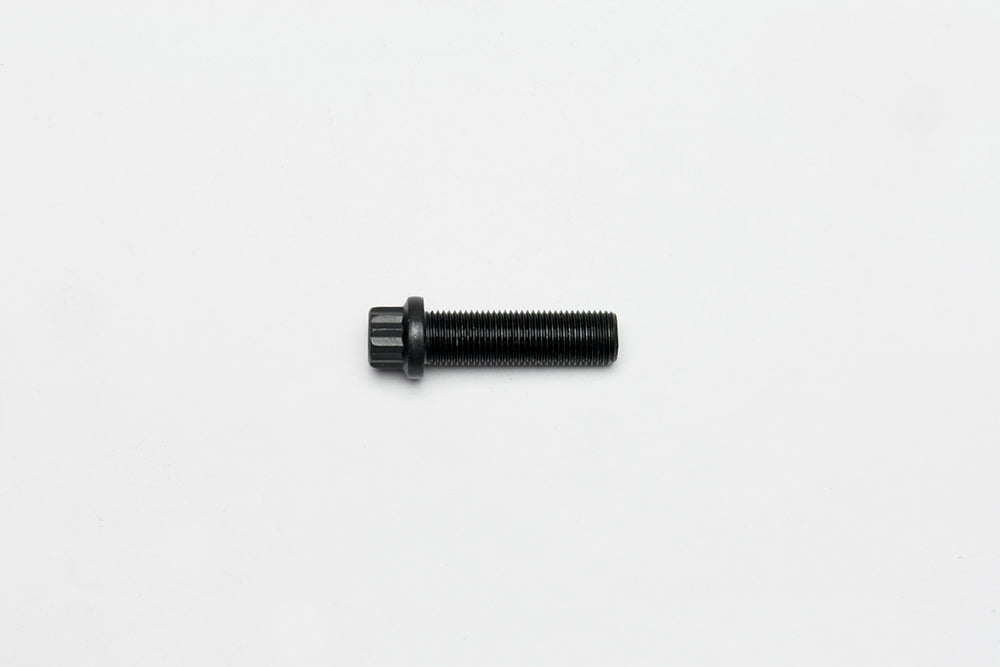

This individual HD hub stud uses a fully threaded 1/2-20 shank and a twelve-point head. Its 1.750-inch length must provide the correct engagement at both the hub and wheel nut for the specified assembly. Wilwood Engineering's disc brake range encompasses calipers, rotors, master cylinders, valves, fittings and brake lines. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures these systems and components for motorsport, street-performance and specialized applications, treating each part as a selection within a complete brake system.
Technical Details
- Manufacturer part number: 230-2187
- Material: Alloy Steel
- Grade: Grade 8
- Head form: 12 Point
- Drive: 12 Point
- Listed fastener length: 1.750 in
- Thread: 1/2-20
- Safety-wire drilling: No
- Finish: Black Oxide
- Component quantity: 1 stud
Fitment & Compatibility
Match the HD hub's service fastener and assess the wheel's thickness. The screw-in design requires the matching threaded hub and should not replace a press-fit splined stud.
Wilwood product specifications
PMB Performance brings more than 20 years of brake-system experience to parts selection. Share the assembly identification and measurements if you need help confirming this component.
