Product details
This pedal pivot service kit contains a pin, retaining bolt and four wave shims. It restores the specified pivot connection; the shims adjust side clearance between the pedal arm and base. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 230-17422
- Material: Steel
- Manufacturer finish designation: Ano
- Quantity: One service kit

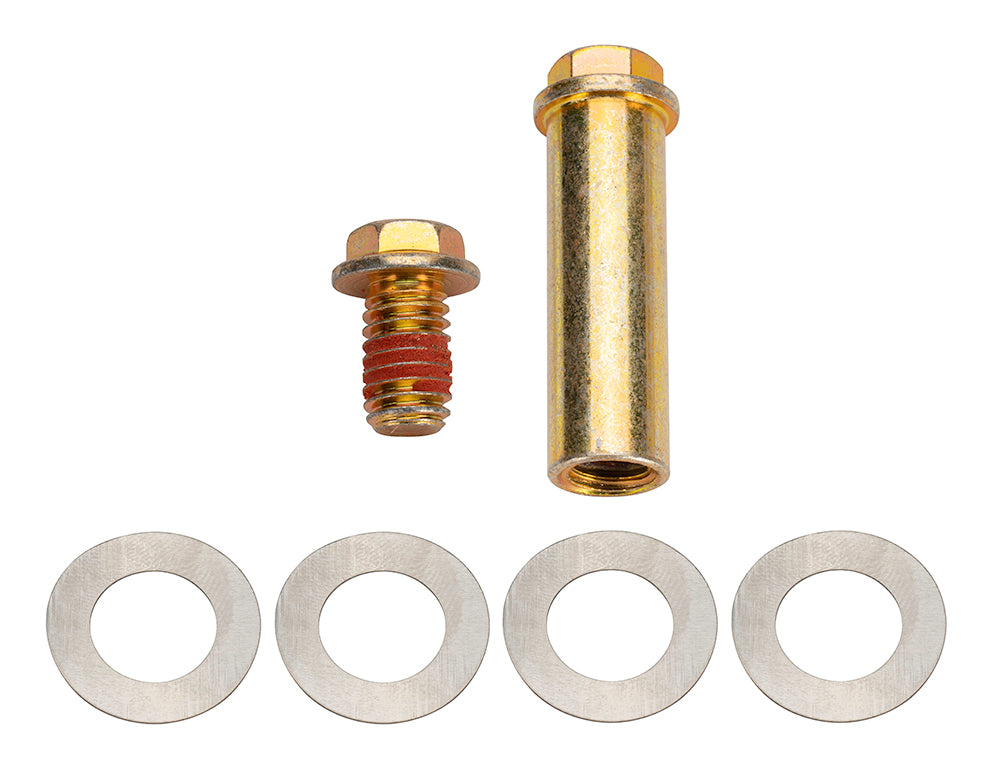

- Contents: One pivot pin, one hex-head bolt and four wave shims
- Pivot pin: 3/8-16 thread, 0.50-inch outside diameter, 1.60-inch length
- Bolt: 3/8-16 x 0.63 inch, six-point hex head
- Wave shims: 0.010 inch thick
Fitment & Compatibility
For the Wilwood pedal pivot specified by DS1560, replace the matching pin and bolt and use the wave shims to control lateral arm movement. Verify the pedal base and pivot arrangement; this is not a universal vehicle pedal-pin kit.
Wilwood component specifications · Manufacturer reference DS1560
