Product details

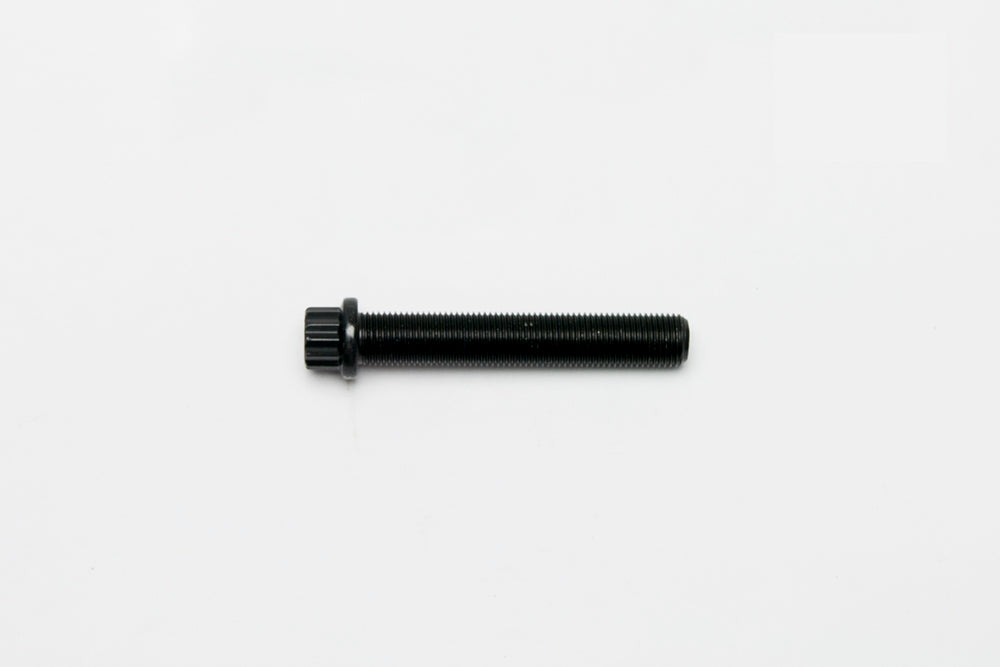

The three-inch length provides the specified thread projection for this individual screw-in wheel stud. Its fully threaded 1/2-20 shank and twelve-point head must match the Wilwood hub's stud arrangement. Wilwood Engineering, established in 1977 by Bill Wood and based in Camarillo, California, designs and manufactures disc brake systems and components. The range covers calipers, master cylinders, rotors, valves, fittings and brake lines for street-performance, motorsport and specialized applications; component selection must account for the entire system.
Technical Details
- Manufacturer part number: 230-14329
- Component quantity: 1 stud
- Material: Alloy Steel
- Grade: Grade 8
- Head form: 12 Point
- Drive: 12 Point
- Listed fastener length: 3.000 in
- Thread: 1/2-20
- Safety-wire drilling: No
- Finish: Black Oxide
Fitment & Compatibility
Determine the required protrusion from the complete hub, wheel and nut stack. A longer stud should not be selected without checking clearances and the hub's approved fastener specification.
Wilwood product specifications
PMB Performance can help review the mating components before you order, with more than 20 years of experience working with brake parts and their fitment.
