Product details

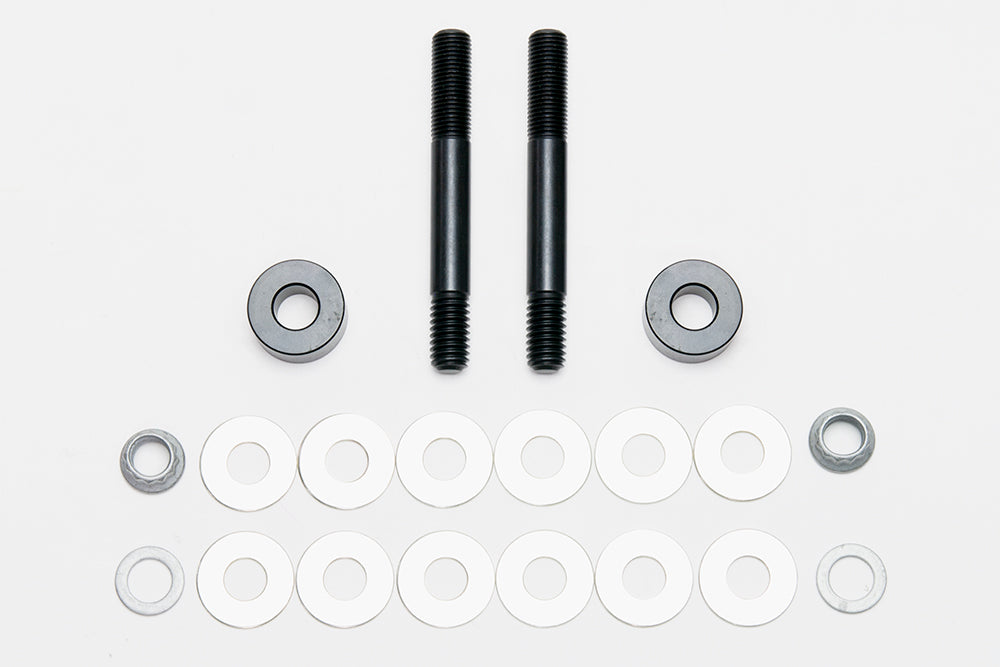

For the specified 14-inch rotor radial-mount arrangement, this kit adds spacers to a pair of 3.150-inch studs. Each stud uses a 3/8-16 bracket end and 3/8-24 nut end, with washers and shims to establish the required stack. Bill Wood's founding of Wilwood Engineering in 1977 established the Camarillo, California company behind this component. Wilwood designs and manufactures disc brake systems, from calipers and rotors to master cylinders, valves, fittings and brake lines, serving motorsport, street-performance and specialized applications where each part must satisfy the complete system's requirements.
Technical Details
- Manufacturer part number: 230-13274
- Material: Alloy Steel
- Grade: Grade 5
- Listed fastener length: 3.150 in
- Thread: 3/8-16 x 3/8-24
- Washer type: Flat
- Nut form: 12-Point-L
- Finish: Black Oxide
- Component quantity: 2 studs
Fitment & Compatibility
Check the radial bracket and caliper assembly as a unit. The spacers and stud length are application-specific; this set does not by itself convert any caliper installation to a 14-inch rotor.
Wilwood product specifications
PMB Performance's 20+ years of experience can help with the details that determine fit. Supply the brake assembly number and the dimensions of the parts being replaced.
