Product details

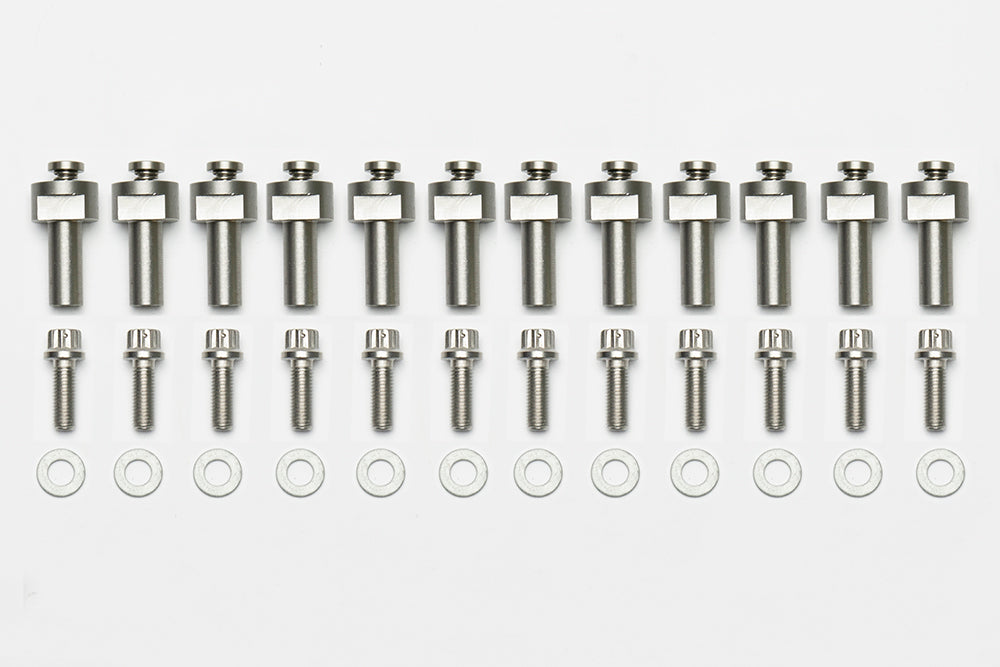

This bobbin-equipped hardware set serves the specified dynamic carbon-ceramic rotor mounting arrangement. Twelve 18-8 stainless bolts use 1/4-28 threads and 0.750-inch lengths, with twelve-point heads and matching bobbins and washers. A designer and manufacturer of disc brake systems, Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. Its work covers street-performance, motorsport and specialized applications, with a product range of calipers, rotors, master cylinders, valves, fittings and brake lines selected to function within a complete brake system.
Technical Details
- Manufacturer part number: 230-12759
- Component quantity: 12 bolts
- Material: Stainless steel
- Grade: 18-8
- Head form: 12 Point
- Drive: 12 Point
- Listed fastener length: 0.750 in
- Thread: 1/4-28
- Washer type: Flat
- Safety-wire drilling: Yes
- Finish: Plain
Fitment & Compatibility
Confirm the exact C/SiC rotor and hat combination before use. Bobbin geometry is part of the rotor's mounting system, so conventional T-nuts or fixed rotor bolts are not equivalent replacements.
Wilwood product specifications
Use PMB Performance's more than 20 years of parts experience to confirm the assembly details before ordering; the original component number and measurements are useful starting points.
