Product details

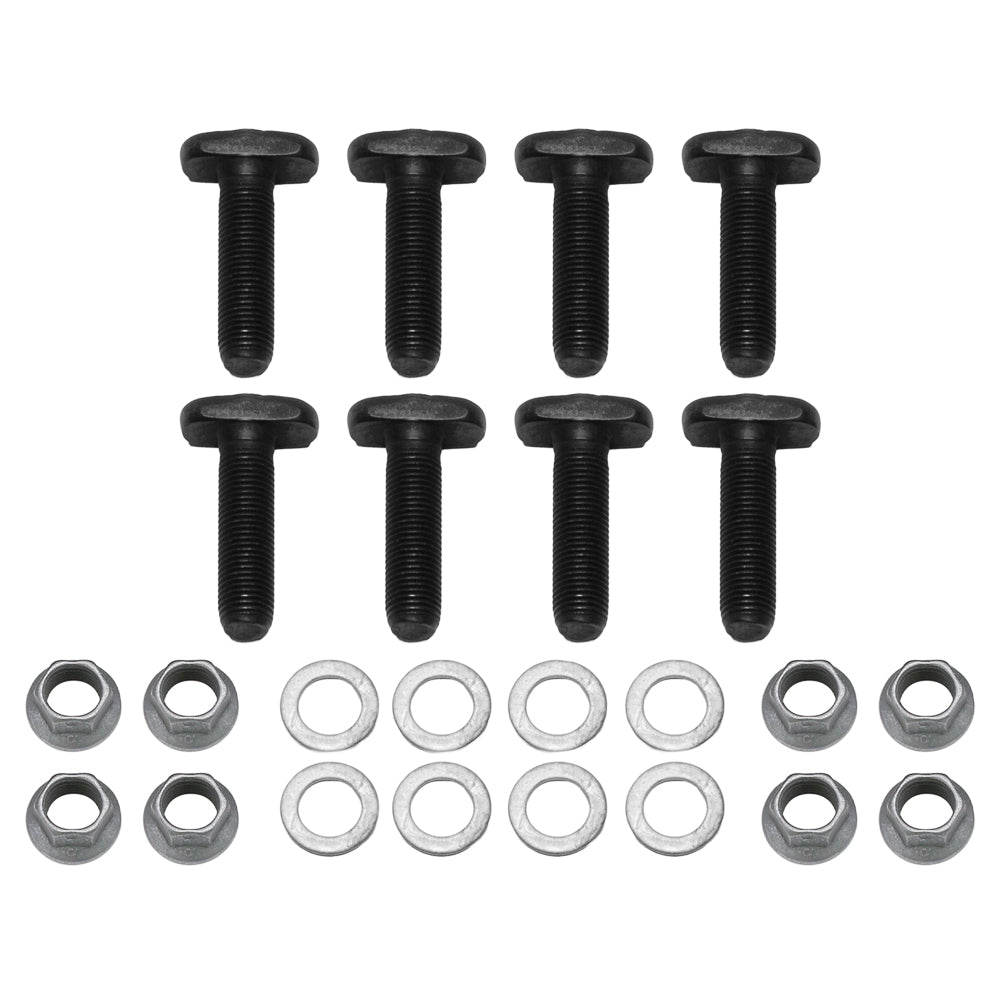

The T-shaped heads locate these bolts in the specified rear axle mounting arrangement. This kit supplies eight Grade 8 fasteners with 3/8-24 threads and a listed 1.437-inch length, together with locknuts and washers. Since Bill Wood founded Wilwood Engineering in 1977, the company has designed and manufactured disc brake systems and components. Based in Camarillo, California, it supplies calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, specialized and street-performance applications; the complete system's requirements remain central to choosing an individual part.
Technical Details
- Manufacturer part number: 230-12096
- Component quantity: 8 bolts
- Material: Alloy Steel
- Grade: Grade 8
- Head form: Tee
- Listed fastener length: 1.437 in
- Thread: 3/8-24
- Safety-wire drilling: No
- Finish: Black Oxide
Fitment & Compatibility
Confirm the axle flange, retainer and T-head seating geometry. These fasteners belong to the rear axle joint and should not be selected as ordinary rotor mounting bolts merely because their threads match.
Wilwood product specifications
PMB Performance's 20+ years of experience can help with the details that determine fit. Supply the brake assembly number and the dimensions of the parts being replaced.
