Product details

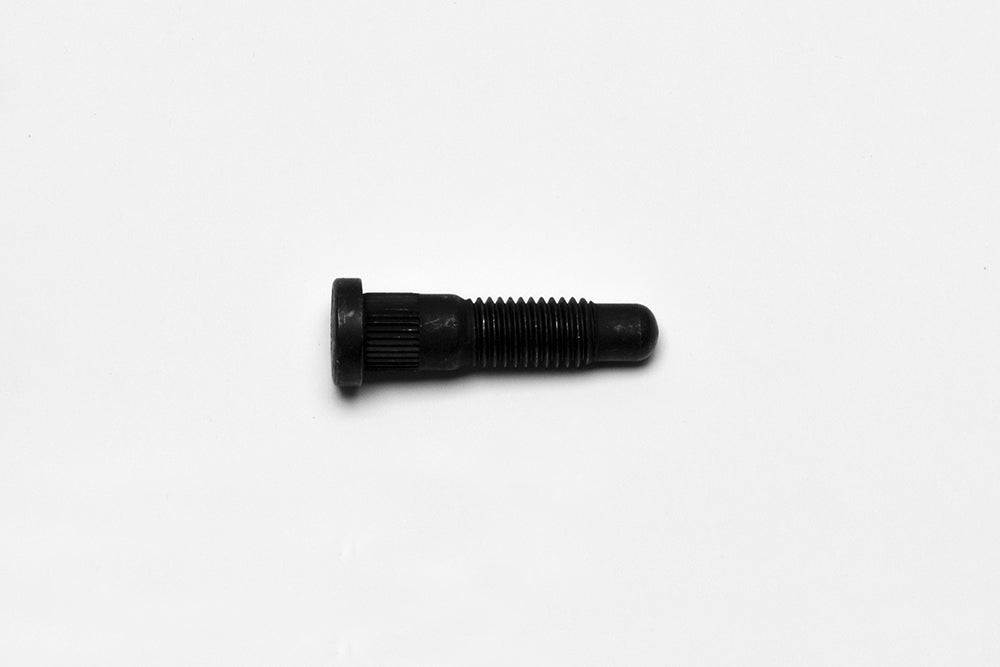

A splined shoulder anchors this 2.620-inch wheel stud in its matching Wide-5 hub. The Grade 8 stud carries 5/8-11 coarse wheel threads and is identified as an individual service fastener. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components for street-performance, specialized applications and motorsport. Its master cylinders, calipers, rotors, brake lines, valves and fittings must be chosen to work together within the complete system.
Technical Details
- Manufacturer part number: 230-10989
- Material: Alloy Steel
- Grade: Grade 8
- Head form: Splined
- Listed fastener length: 2.620 in
- Thread: 5/8-11
- Finish: Black Oxide
- Component quantity: 1 stud
Fitment & Compatibility
Verify the hub's stud bore and wheel projection requirements. Wilwood's bulk catalog also states a 100-piece minimum, so confirm the selling quantity rather than assuming the listing is a 100-stud box.
Wilwood product specifications
For help matching the service part to your brake assembly, contact PMB Performance with its identification and dimensions. Our team draws on over 20 years of experience.
