Product details

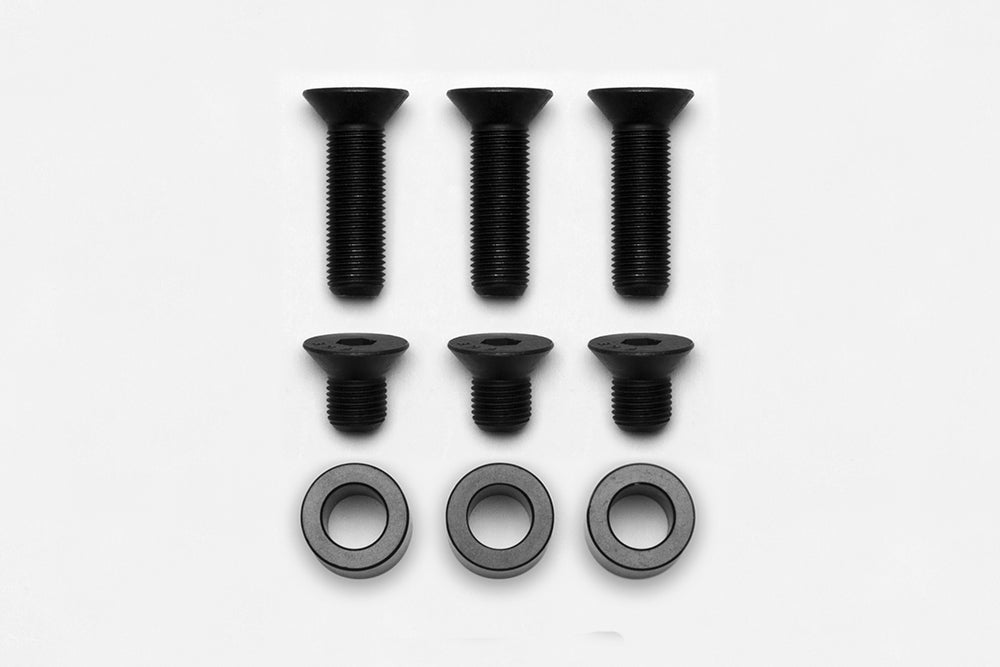

The three-pin Midget adapter uses this dedicated hardware set, including three 0.750-inch flat-head bolts. The 1/2-20 threaded fasteners work with the associated adapter pins and washers shown in the kit. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Calipers, rotors, master cylinders, fittings, brake lines and valves form its range for motorsport, specialized and street-performance use; individual parts must match the requirements of the complete system.
Technical Details
- Manufacturer part number: 230-10853
- Component quantity: 3 bolts
- Material: Alloy Steel
- Grade: Grade 8
- Head form: Flat Head
- Drive: Hex Drive
- Listed fastener length: 0.750 in
- Thread: 1/2-20
- Safety-wire drilling: No
- Finish: Black Oxide
Fitment & Compatibility
Check the exact Midget adapter design and countersunk bolt seating surfaces. Do not substitute a hex-head rotor kit where the adapter requires flat heads and its matching drive pins.
Wilwood product specifications
Bring the original assembly number and relevant measurements to PMB Performance for fitment assistance backed by 20+ years of experience.
