Product details

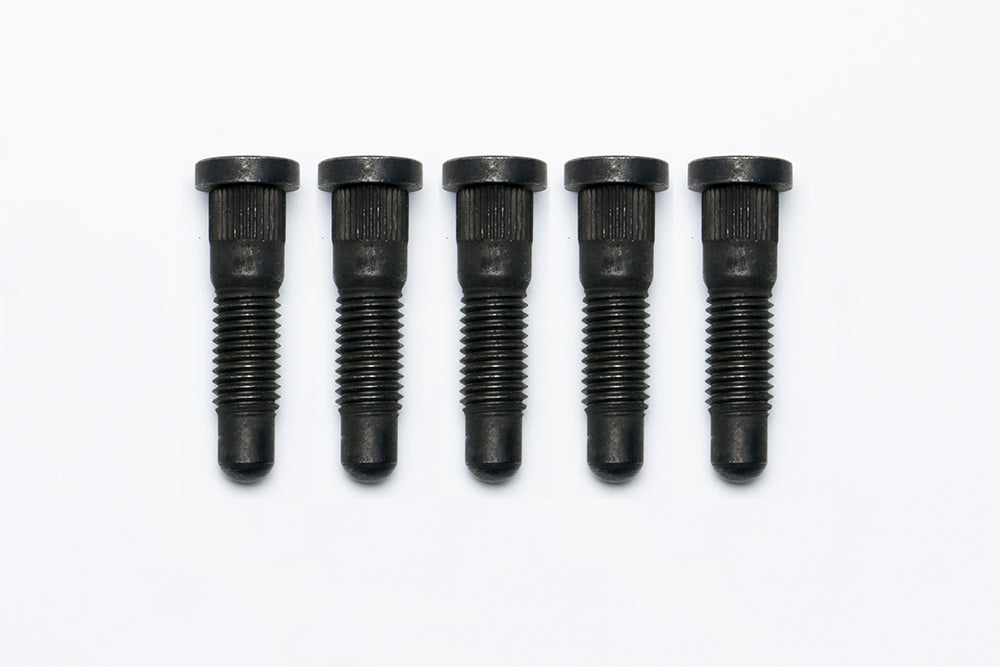

This Wide-5 service pack contains five splined wheel studs with 5/8-11 coarse threads. The 2.620-inch length and press-fit shoulder must suit the hub and wheel stack, while the splines locate the stud in its mounting bore. The Wilwood Engineering range includes disc brake calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977, and it designs and manufactures these brake systems and components from Camarillo, California. The complete assembly's requirements govern which individual components belong together.
Technical Details
- Manufacturer part number: 230-0620
- Component quantity: 5 studs
- Material: Alloy Steel
- Grade: Grade 8
- Head form: Splined
- Listed fastener length: 2.620 in
- Thread: 5/8-11
- Safety-wire drilling: No
- Finish: Black Oxide
Fitment & Compatibility
Use the hub's specified stud and installation procedure. Confirm spline engagement and usable wheel-thread projection; a coarse thread alone does not establish a suitable replacement.
Wilwood product specifications
Use PMB Performance's more than 20 years of parts experience to confirm the assembly details before ordering; the original component number and measurements are useful starting points.
