Product details

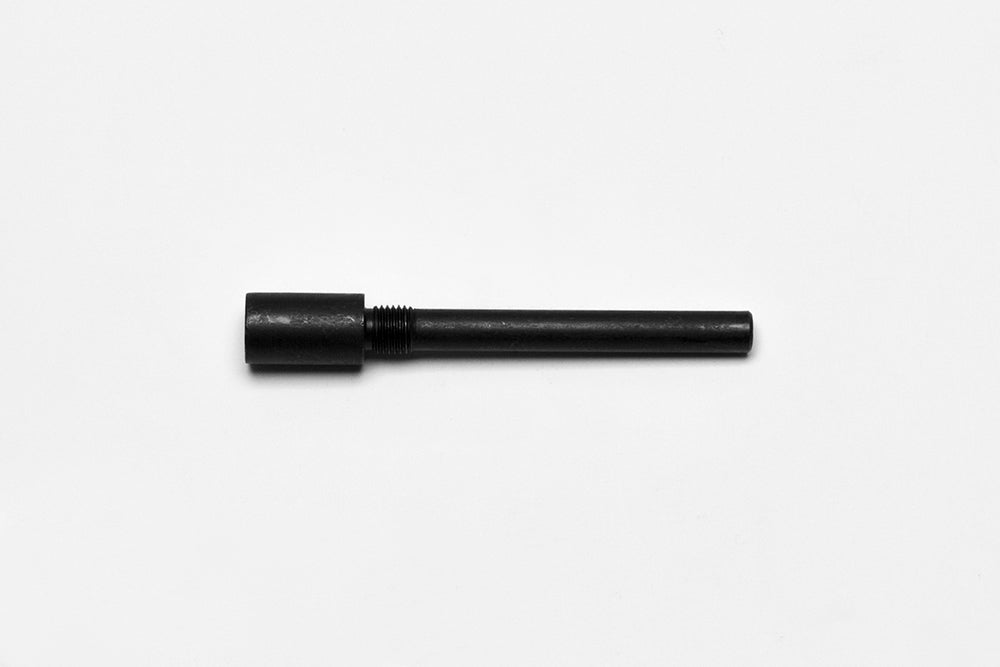

The smooth guide section of this GM-type slide bolt supports the caliper's intended sliding movement. Wilwood specifies a 7/16-20 threaded end, 3.370-inch length and Grade 5 alloy-steel construction with a black-oxide finish. Wilwood Engineering, founded by Bill Wood in 1977, is a Camarillo, California designer and manufacturer of disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and brake lines in its range for motorsport, street-performance and specialized applications. Selecting a service part requires matching the complete system's operating and installation needs.
Technical Details
- Manufacturer part number: 230-0542
- Head form: Socket Head
- Drive: Hex Drive
- Listed fastener length: 3.370 in
- Thread: 7/16-20
- Safety-wire drilling: No
- Finish: Black Oxide
- Component quantity: 1 bolt
- Material: Alloy Steel
- Grade: Grade 5
Fitment & Compatibility
Match the caliper and bracket guide design, not just the thread. One bolt is shown in the detail listing, while the manufacturer's bulk catalog notes a 100-piece minimum; confirm the order unit.
Wilwood product specifications
For help matching the service part to your brake assembly, contact PMB Performance with its identification and dimensions. Our team draws on over 20 years of experience.
