Product details

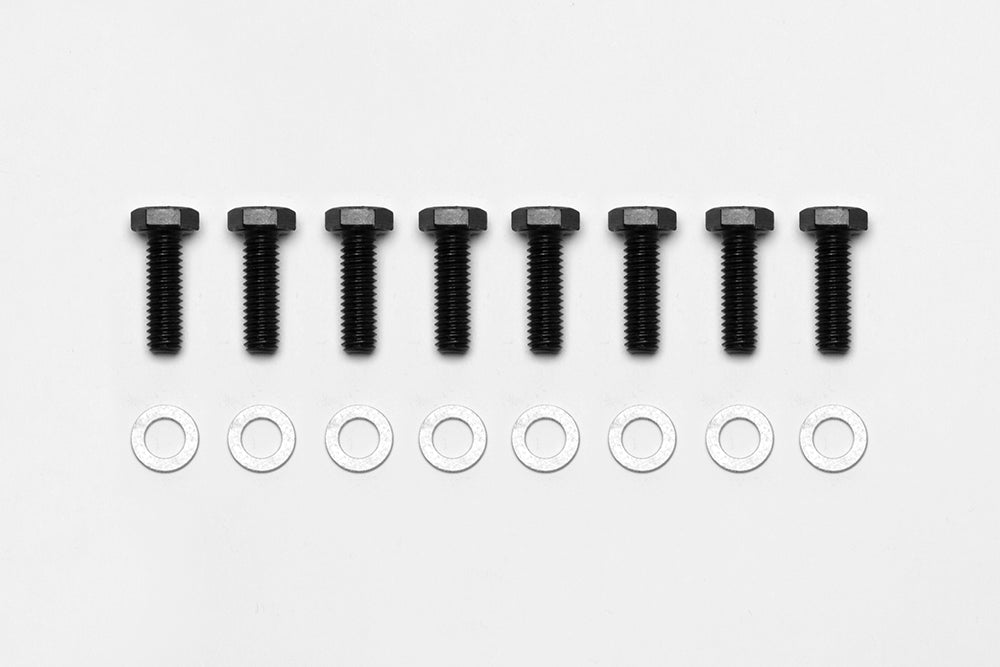

Attach the specified rotor to a Wide-5 hub with this eight-bolt kit. It supplies one-inch-long 5/16-18 hex-head fasteners and flat washers; the bolt heads are not drilled for lock wire. This component comes from Wilwood Engineering's disc brake program, designed and manufactured for motorsport, street-performance and specialized applications. Bill Wood established the company in 1977; it is based in Camarillo, California. The range spans calipers, rotors, master cylinders, valves, fittings and brake lines, whose selection depends on the requirements of the complete braking system.
Technical Details
- Manufacturer part number: 230-0526
- Component quantity: 8 bolts
- Material: Alloy Steel
- Grade: Grade 8
- Head form: Hex Head
- Drive: Hex
- Listed fastener length: 1.000 in
- Thread: 5/16-18
- Washer type: Flat
- Safety-wire drilling: No
- Finish: Black Oxide
Fitment & Compatibility
Confirm the hub's rotor-mounting specification and the flange stack before assembly. Use the relevant Wilwood hub instructions for tightening and retention rather than substituting a drilled or differently sized bolt set.
Wilwood product specifications
If you need help confirming the original setup, PMB Performance can review the component identification with you. We bring more than 20 years of brake and fitment experience.
