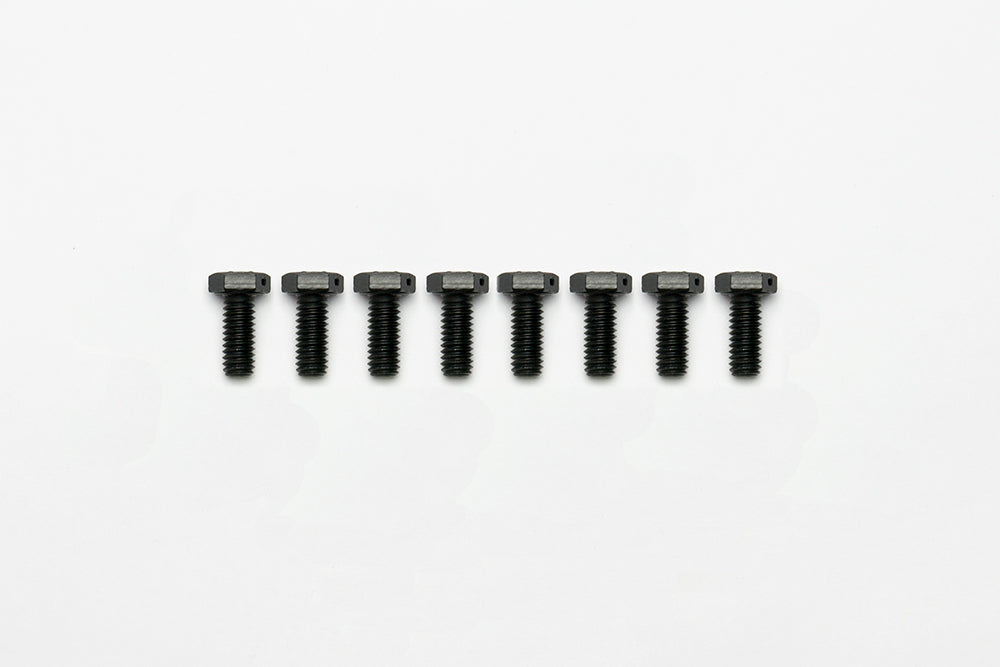

Wilwood Rear Drag Rotor-to-Hat Hardware, Eight 5/16-18 Hex Bolts

For a compatible rear drag rotor and threaded hat, this kit uses eight Grade 8 hex-head bolts with a 0.750-inch length. Wilwood identifies this short-profile hardware for assemblies where the rotor-to-hat bolt-head clearance must be controlled. Camarillo, California is home to Wilwood Engineering, the disc brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including calipers, rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require parts selected for the complete brake system's demands.

Technical Details

• Manufacturer part number: 230-0233D
• Material: Alloy Steel
• Grade: Grade 8
• Head form: Hex Head
• Drive: Hex
• Listed fastener length: 0.750 in
• Thread: 5/16-18
• Safety-wire drilling: Yes
• Finish: Black Oxide
• Component quantity: 8 bolts

Fitment & Compatibility

Check the exact hat and solid-rotor combination. The low-profile hex bolts are not interchangeable with taller socket-head hardware without checking clearance; follow Wilwood's hat and rotor instructions.
