Product details

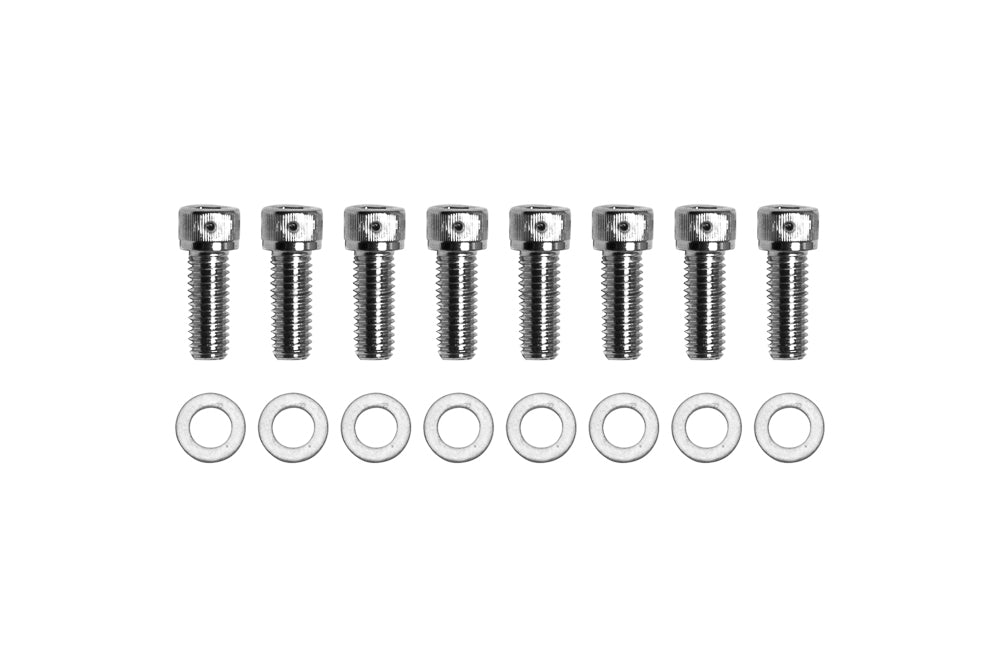

Eight socket-head bolts and flat washers make up this hardware set for the specified threaded rotor-to-hat connection. The 5/16-24 thread is fine-pitch, and each bolt has a 0.750-inch listed length with provision for safety wire. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components for street-performance, specialized applications and motorsport. Its master cylinders, calipers, rotors, brake lines, valves and fittings must be chosen to work together within the complete system.
Technical Details
- Manufacturer part number: 230-0150
- Component quantity: 8 bolts
- Material: Alloy Steel
- Grade: Grade 8
- Head form: Socket Head
- Drive: Hex Drive
- Listed fastener length: 0.750 in
- Thread: 5/16-24
- Washer type: Flat
- Safety-wire drilling: Yes
- Finish: Black Oxide
Fitment & Compatibility
Match the hat's thread, rotor flange and required clamping stack. Follow the installation sheet for the actual rotor assembly, including torque and lock-wire instructions.
Wilwood product specifications
With over 20 years of experience, PMB Performance can help you identify the correct service hardware and check how it belongs in the complete assembly.
