Product details
The H2 and 2500 HD rear package uses angled hose ends with imperial chassis adapters. Wilwood's written specification calls for straight NPT caliper fittings on the 14-inch lines. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer part number: 220-9811
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 7/16-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis adapter reference: 220-6457
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility

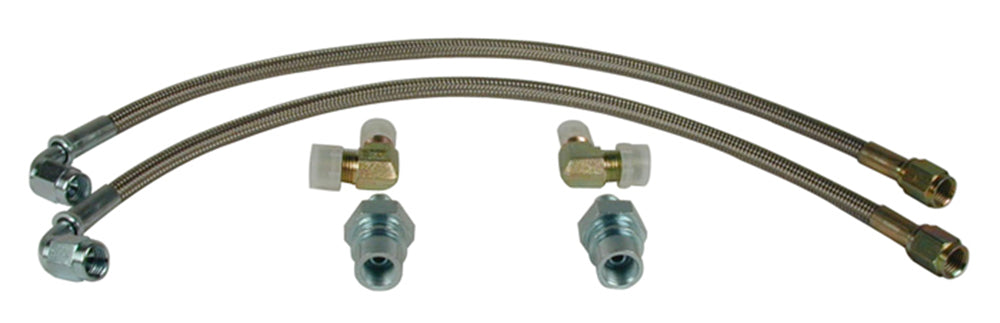

Confirm the exact Hummer H2 or GM 2500 HD rear conversion and 7/16-24 inverted-flare connection. The product photograph shows elbow-style caliper fittings while the table specifies straight ones, so resolve the supplied fitting geometry before installation.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
