Product details

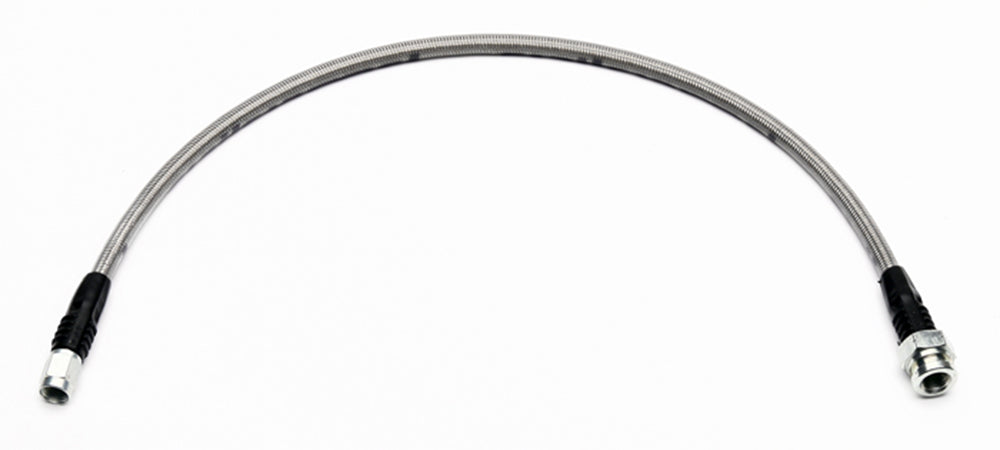

This individual flexline uses an integrated M10 x 1 inverted-flare socket at the chassis end. The 16.5-inch overall length and straight female -3 outlet suit a precisely measured brake-plumbing route. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 220-9800
- Component: Individual braided brake hose
- Hose length (inches): 16.50
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Verify the inverted-flare seat rather than choosing by thread size alone. Select the mating adapter and mounting support for the actual system; this hose's universal application does not assign it to a particular axle or vehicle.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
