Product details

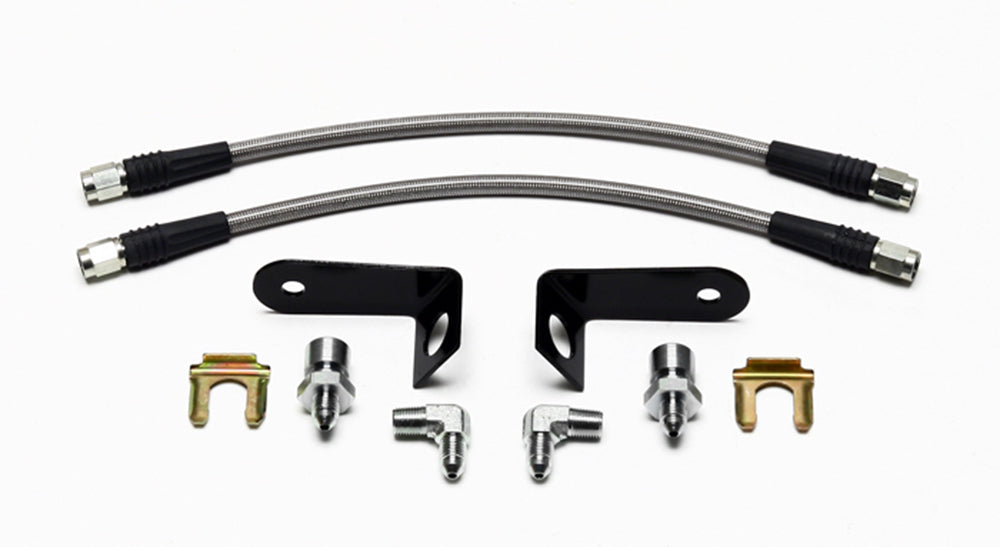

This Wilwood hose package supports the front conversion built around the specified Superformance spindle. Short 12-inch lines connect the angled chassis brackets to the calipers through imperial adapters. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.
Technical Details
- Manufacturer part number: 220-9481
- Component: Brake flexline and fitting kit
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-9349 / 250-9350
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Verify the exact Superformance spindle and front brake kit; the older kit-car description does not establish fitment to other replica chassis. Check the 3/8-24 inverted-flare hard-line seats and clearance around the right-angle caliper fittings.
