Product details

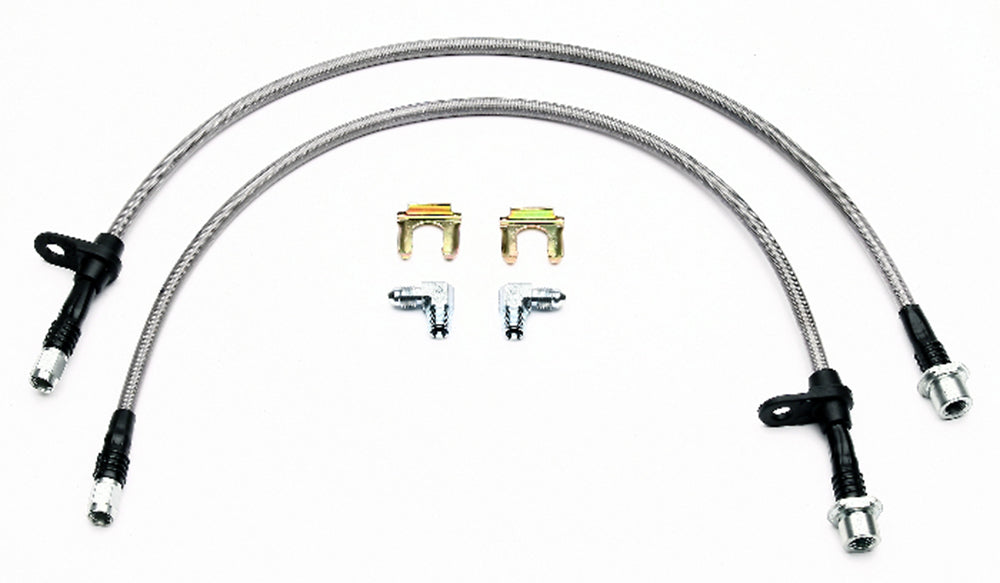

The tC hose kit uses integral mounting tabs to retain its 24-inch flexlines. Deep metric inverted-flare chassis sockets connect the hard lines, while separate elbows join the hoses to NPT calipers. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.
Technical Details
- Manufacturer part number: 220-9365
- Component: Brake flexline and fitting kit
- Hose length (inches): 24.00
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female (Deep)
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
The product identity names 2005–2006 Scion tC front Superlite applications; the current kit note specifically names 2005. Confirm the exact year and conversion, including tab location, rather than substituting the shorter multi-model Scion hose package.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
